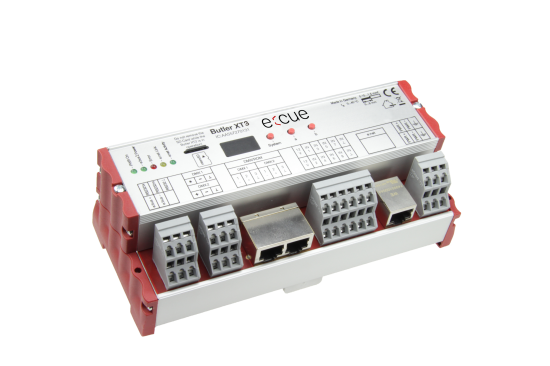

Butler XT3

DMX/RDM engine that can be used in
standalone mode

Controls up to 1,024 DMX/RDM channels
Remote control via Glass Touch GT12X User Terminals (up to 8), using the e:bus2 protocol -> not e:bus compatible (old Glass Touch series and Butler XT2)!
Supports RDM protocol for bidirectional communication
Internal real-time and astronomical clock
Standalone configuration via web browser
Serial input port (RS-232) for connectivity to 3rd party systems
Eight freely configurable (optically isolated) digital inputs
MicroSD card for show upload/configuration file storage (included in delivery)
Freely configurable actions for standalone mode (e.g. play, pause, resume, stop, previous and next cue list, intensity up/down), plays up to eight cuelist in parallel
Master intensity dimmable
Cue list download from e:cue Lighting Application Suite

The Butler XT3 is a DMX/RDM engine which can be used in standalone mode to replay and loop lighting shows which have been previously uploaded and programmed using a PC running the e:cue LAS software suite. It can also be used as a DMX/RDM device, controlled by another e:cue engine. In standalone mode, the Butler XT3 can control up to 1,024 DMX/RDM channels. It is possible to increase the DMX/RDM channel count to 65,536 channels by clustering more Butler XT3s. The engine offers a variety of connectivity options for controlling the lighting show running on the device. These include direct connection to the Glass Touch GT12X, RS-232, digital inputs and Ethernet.

The ButlerXT3 requires the latest
Lighting Application Suite 7.0 SR3

IC: CL24100004935

Download

Specification Sheets

EN_Butler XT3_Spec v1p6

Manuals

EN_Butler XT3_Setup v1p1

CAD Files

Butler XT3 front

Butler XT3 side

Conformity

EU-Declaration of Conformity Butler XT3 V1.0

System Topology

Specs

Dimensions (W x H x D)	177 x 60 x 75 mm / 7 x 2.4 x 3 in (excl. fastening clip)
Weight	0.4 kg/ 0.88 lb
Power supply input	12 … 24 V DC with e:bus2 24 V DC only 170 mA @ 24 V @ 8 x Glass Touch
Power consumption	max. 3.5 W (incl. DMX termination)
Op. / storage temperature	0 … 40 °C / 32 … 104 °F
Op. / storage humidity	0 … 80% RH, non-condensing
Protection class	IP20
Housing	Aluminium, Polyamide 6.6
Mounting	on 35 mm DIN rail
Certificates	CE, UKCA
Inputs	1 x RS-232 (clamp terminals) 8 x optically isolated digital input max voltage 24 V DC 12 V DC x 15 mA power supply for external contacts
Outputs	2 x DMX / RDM (RJ45, clamp terminals)
System link	1 x e:bus2 (clamp terminals; not e:bus compatible!) max 16 V DC x 115 mA 1 x e:net (RJ45)
Display	7-segment LED
User interfaces	3 Buttons 5 LEDs
