Bridge8

sACN/Art-Net to DMX512 interface

8 outputs for DMX512
Switch between two input sources
Highly isolated outputs
Support for unicast or multicast mode
Integrated protection against surge (Level 3)
Protection against miswiring
Extended operating temperature -40 - 70 °C*
Reverse polarity protection
Power-over-Ethernet
Test mode access via button
Web interface for status and configuration

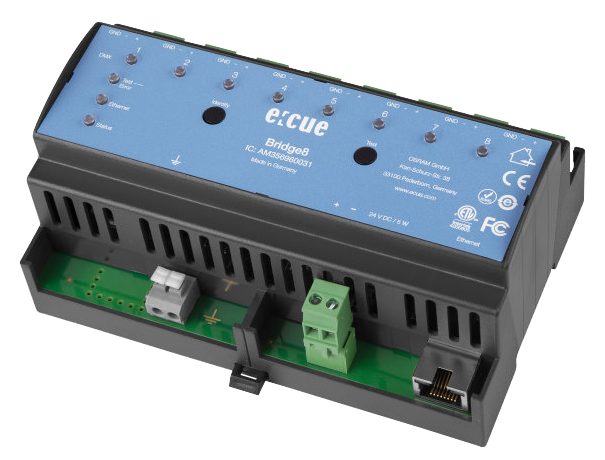

The Bridge8 is an sACN/Art-Net to DMX512 interface with a total of 8 DMX512 outputs for a max of 4096 DMX512 channels. It is DIN rail mountable and has been specifically developed with tough outdoor environments in mind. Designed for this use, it comes with integrated surge protection and components that allow a very high operating temperature – the outputs are isolated up to 3,75 kV. The built-in web interface enables all parameters to be easily set and managed. With a freely definable DMX value the source IP (sACN/Art-Net Sender) can be easily changed to a different device.

IC: AM356960031

Download

Specification Sheets

EN ecue Bridge8 Spec v3p0

DE ecue Bridge8 Datenblatt v3p0

Manuals

EN ecue Bridge8 Setup v2p0

DE ecue Bridge8 Bedienungsanleitung v2p0

Tender Text

Tender Text – Bridge8

CAD Files

ecue Bridge8 Front

ecue Bridge8 Side

Conformity

EU-Declaration of Conformity SYMPL 8-port Nodes

System Topology

Specs

Dimensions (W x H x D)	143 x 92 x 62 mm / 5.63 x 3.6 x 2.4 in (excl. fastening clip)
Weight	250 g / 0.55 lb
Power Supply	24 … 48 V DC (terminal plug), reverse polarity protection or PoE IEEE 802.3af on RJ45
Power Consumption	Max. 8 W (incl. DMX termination)
Operating Temperature	-40 … 70 °C* / -40 … 158 °F*
Storage Temperature	-40 … 70 °C* / -40 … 158 °F*
Electrical Safety	SELV
Operating/Storage Hum.	0 … 80% non-condensing
Protection Class	IP20
Housing Material	Self extinguishing blend PC/ABS
Mounting	On 35 mm DIN rail (EN 60715) or with key hole on any stable vertical surface
Certification	CE, ETL, UKCA
Interface	8 x DMX512 Isolated in pairs Surge protection 3-pin terminal plug
Interface Specifications	V_DMXmax / V_DMXmin = 4.6 V / 0.8 V Short circuit protected: I_SCmax = 100 mA
Ethernet-Port	1 x e:net/ethernet 10/100 Mbit/s, RJ-45 Surge protection
User Interface	LEDs for error, Ethernet activity, Device status, DMX status, Identify button, Test button

* 70 °C / 158 °F for max. 1 hour/day; continuous operation at max. 60 °C / 140 °F
