Multifunctional solution for load switching, energy monitoring and power measuring combined in a single device

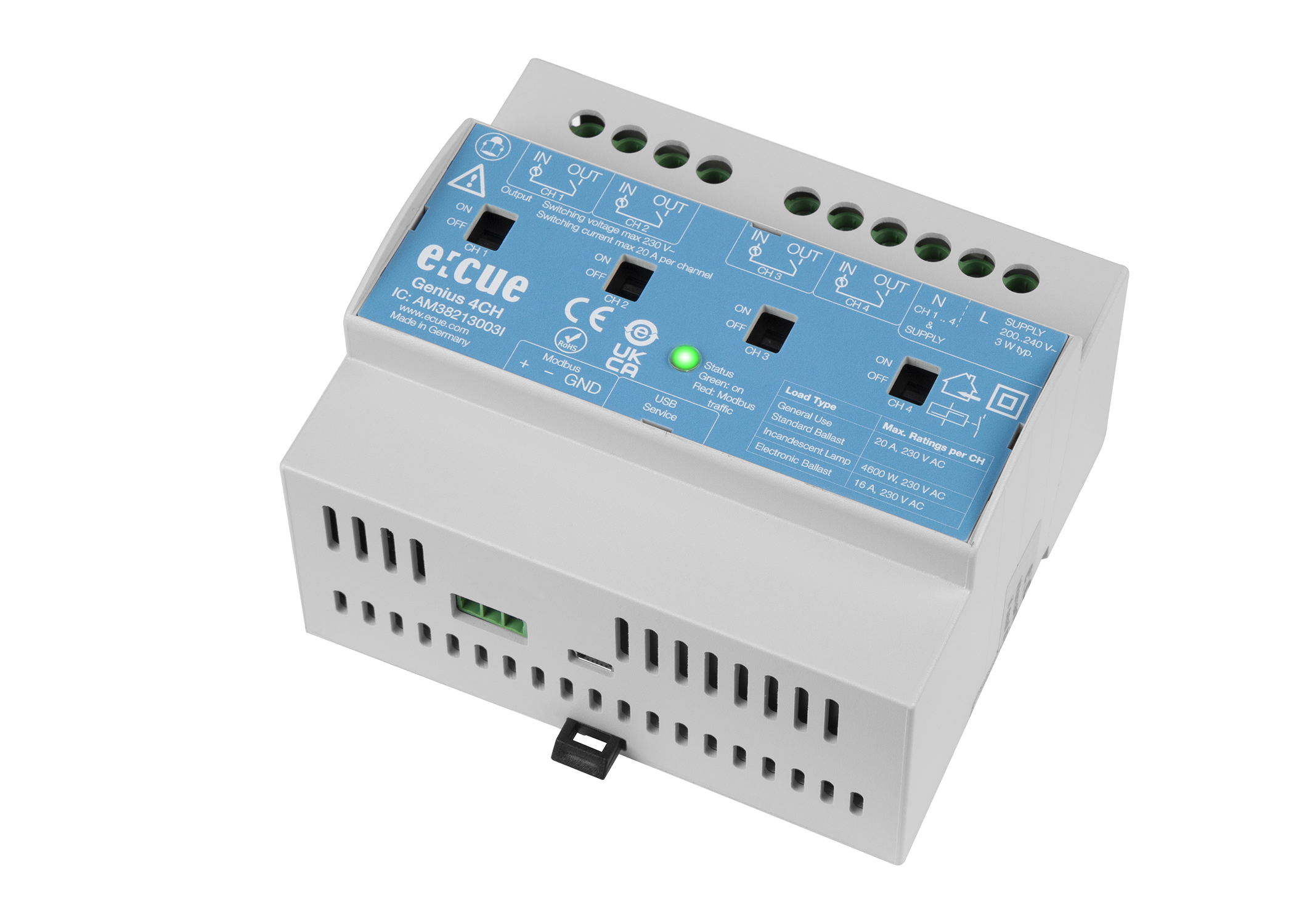

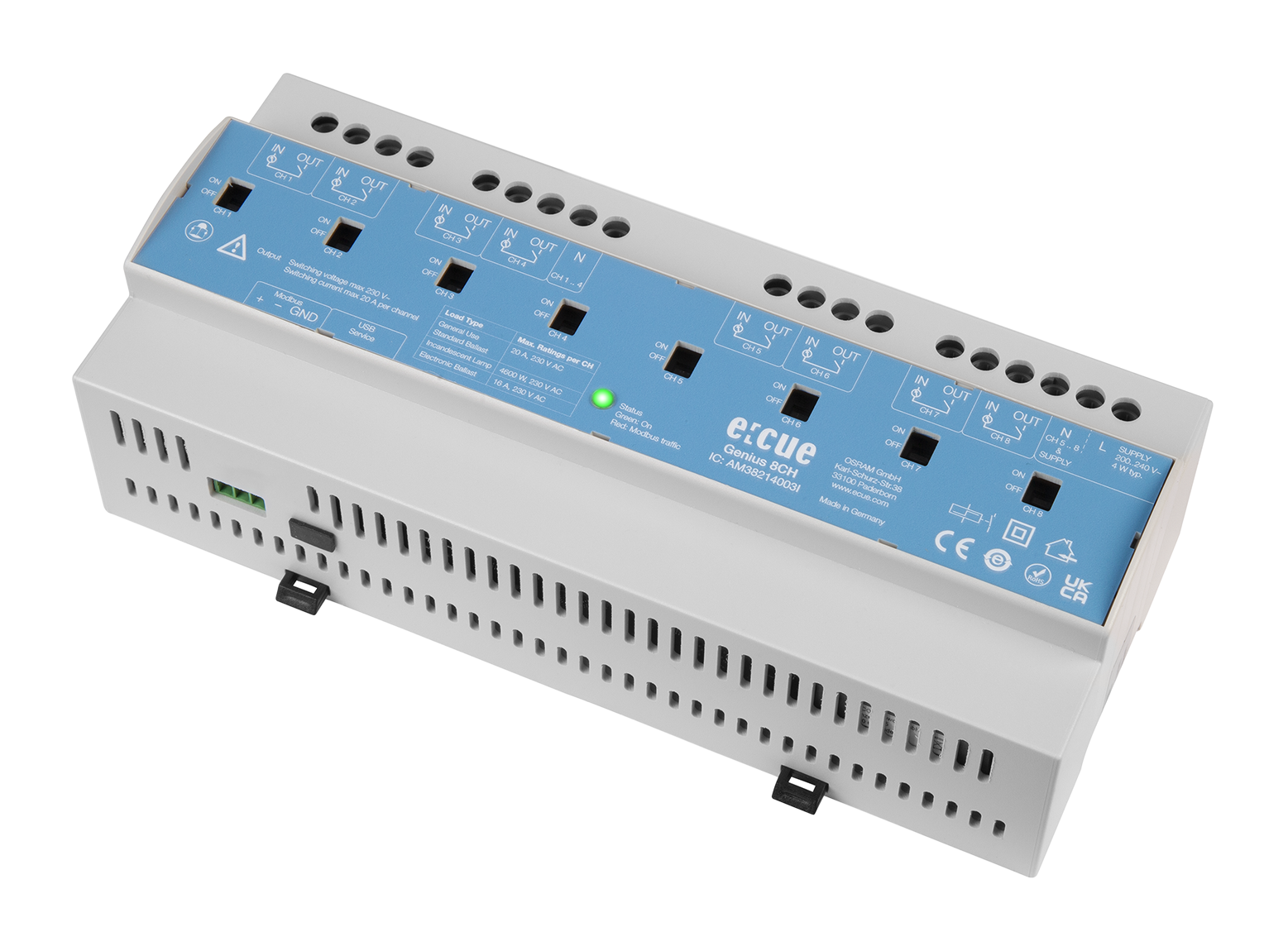

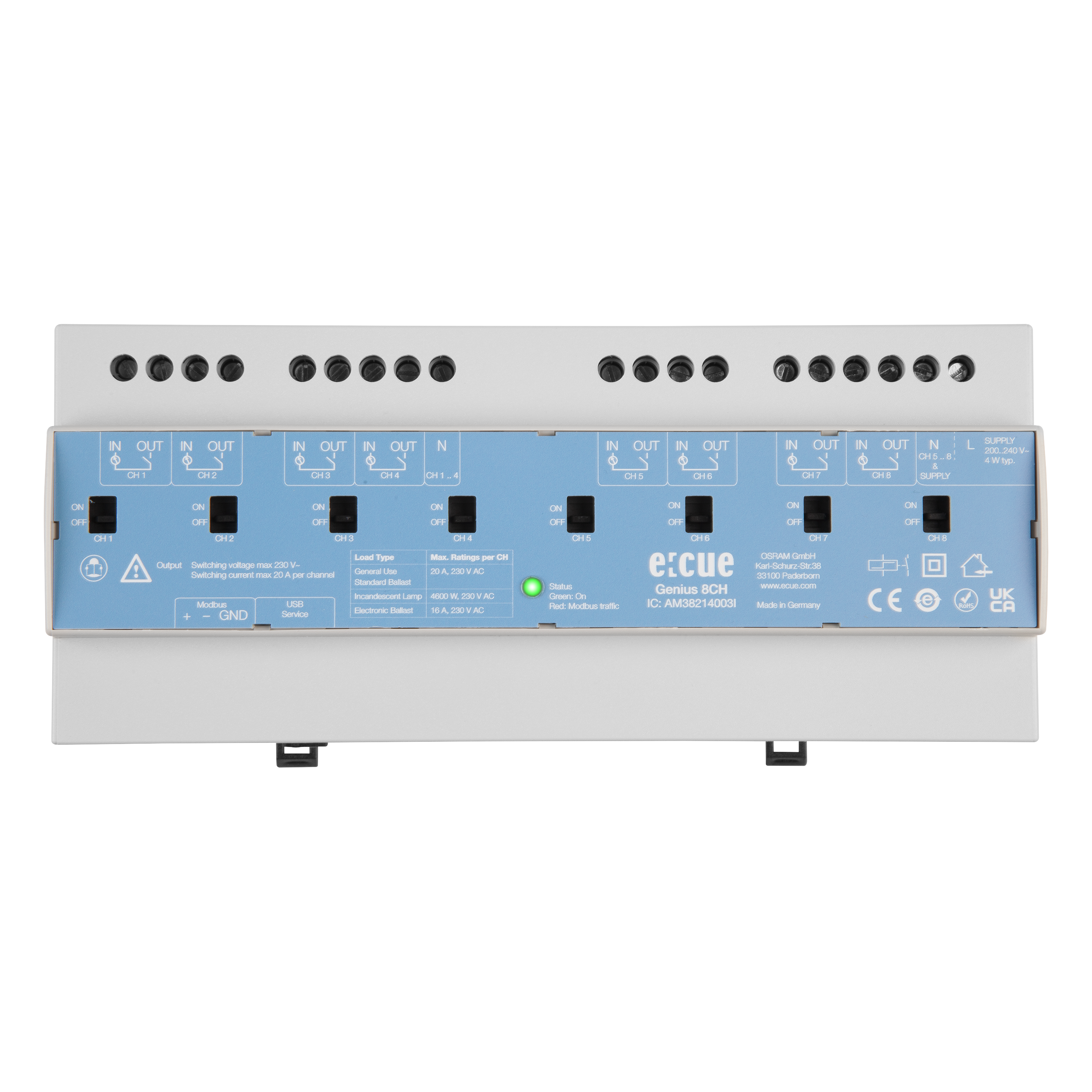

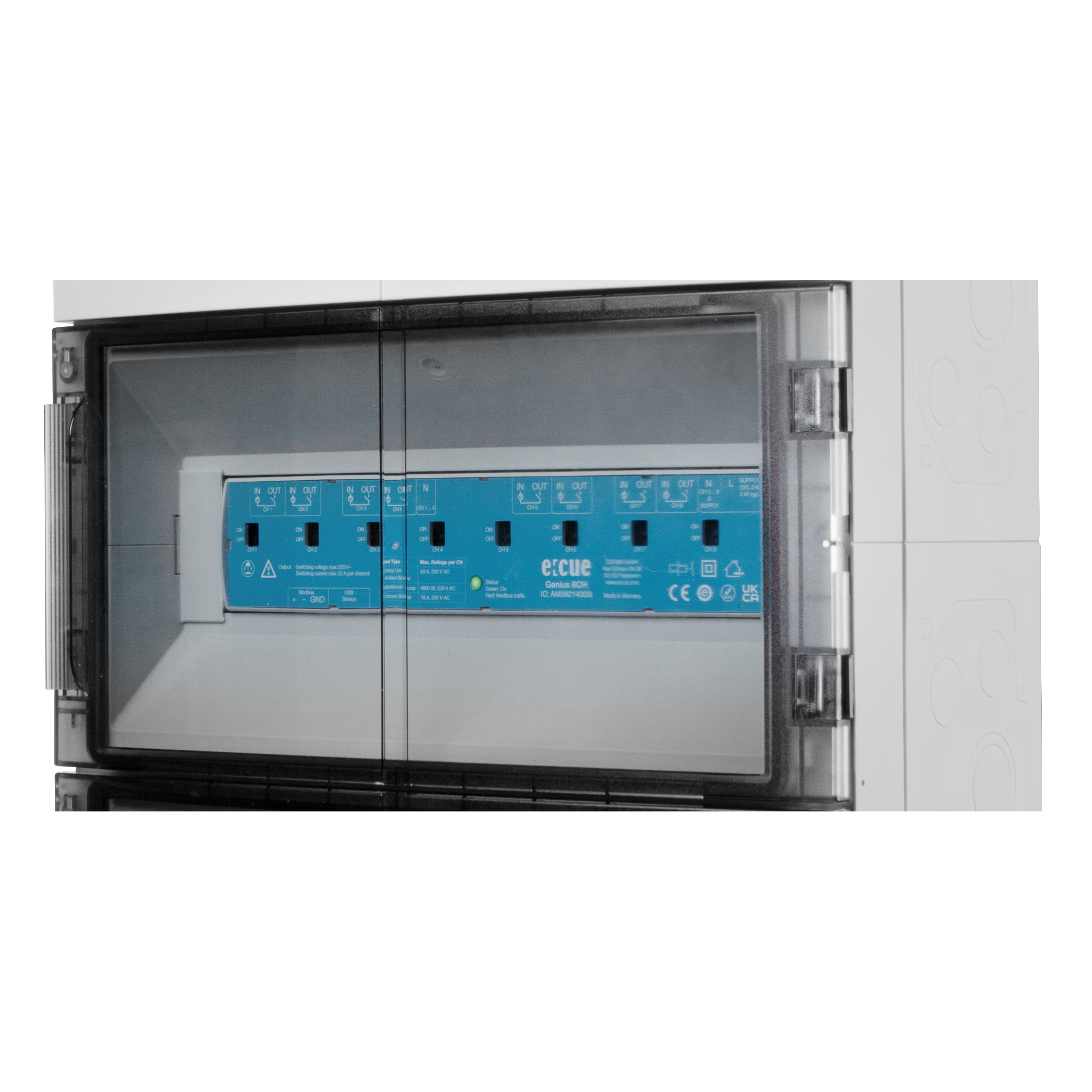

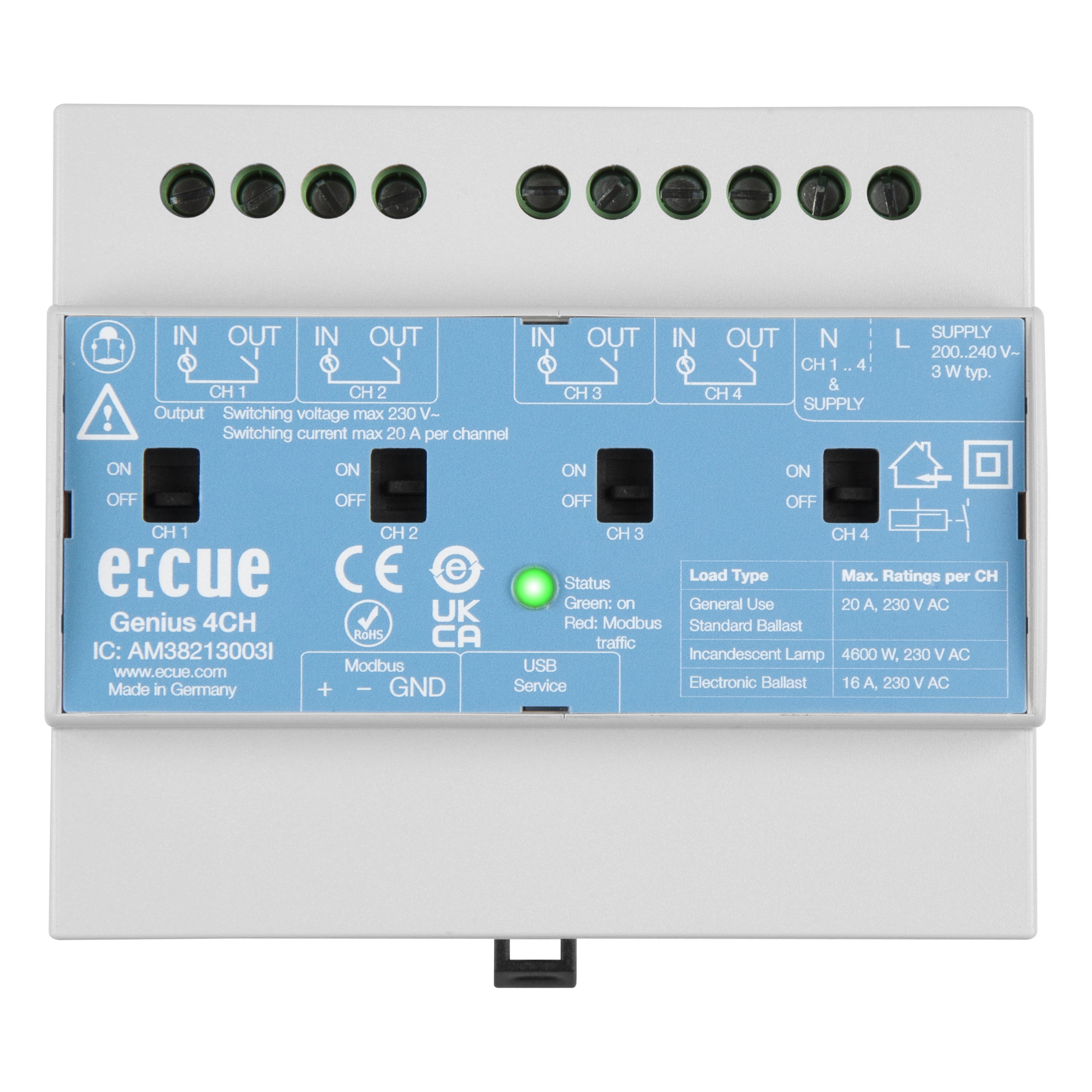

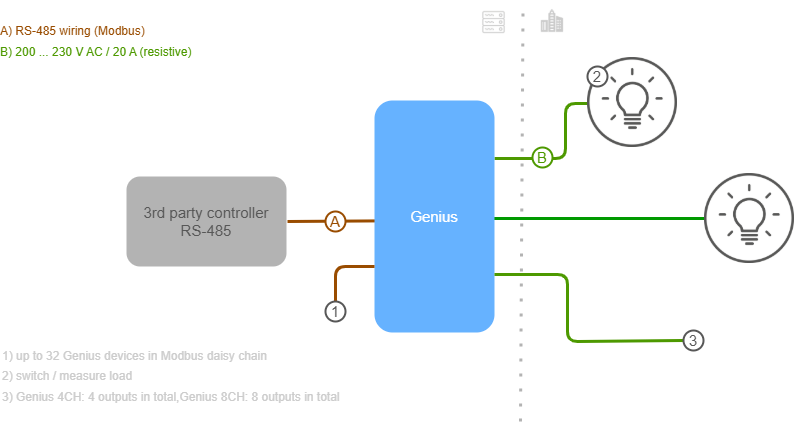

The Genius is a relay controller and energy meter that combines measuring and switching load in a single device. Communication with any third party system is made via the Modbus RTU / ASCII protocol at a RS-485 interface. The Genius 4CH provides four bistable relay interfaces in single-pole, single-throw configuration, accompanied by manual switches for service overrides. The Genius 8CH offers eight of them. It is a modular basic solution for controlling lighting installations. The Genius is easily mounted on standard 35 mm DIN rails, or with a key hole in the housing base on walls or on any stable vertical surface. The Node is AC line powered.
IC 4 channels: AM38213003I
IC 8 channels: AM38214003I
Certifications & Approbations
| Genius 4CH | Genius 8CH | |||||||||||||||||
| Dimensions (W x H x D) | 106.3 x 90.5 x 62 mm / 4.2 x 3.6 x 2.4 in (excl. fastening clip) |
213 x 90.5 x 62 mm / 8.4 x 3.6 x 2.4 in (excl. fastening clip) |
||||||||||||||||
| Weight | 320 g / 0.71 lb | 600 g / 1.32 lb | ||||||||||||||||
| Power input | 200-240V ±10% 50/60Hz AC | 200-240V ±10% 50/60Hz AC | ||||||||||||||||
| Power consumption | < 3 W | < 4 W | ||||||||||||||||
| Operating temperature |
-20 … 50 °C / -4 … 122 °F for > 40 °C, only use max. 2 channels up to 20 A load |
-20 … 50 °C / -4 … 122 °F for > 40 °C, only use max. 4 channels up to 20 A load |
||||||||||||||||
| Storage temperature | -10 … 70 °C / -4 … 158 °F | -10 … 70 °C / -4 … 158 °F | ||||||||||||||||
| Operating/Storage humidity | 0 … 80% RH, non-condensing | 0 … 80% RH, non-condensing | ||||||||||||||||
| Overvoltage category | II | II | ||||||||||||||||
| Installation conditions | IP20, not designed for outdoor use, Intra-building connections only | IP20, not designed for outdoor use, Intra-building connections only | ||||||||||||||||
| Pollution degree | II | II | ||||||||||||||||
| IEC protection class | Class II | Class II | ||||||||||||||||
| Housing | Self-extinguishing blend PC/ABS, UL document E140692 | Self-extinguishing blend PC/ABS, UL document E140692 | ||||||||||||||||
| Mounting | On 35 mm DIN rail (EN 60715) or with keyhole on any stable vertical surface | On 35 mm DIN rail (EN 60715) or with keyhole on any stable vertical surface | ||||||||||||||||
| Certificates | CE, UKCA, RoHS | CE, UKCA, RoHS | ||||||||||||||||
| Relay outputs |
4 x SPST feed-through latching relay with manual override, rising cage clamp for solid and stranded wire, wire gauge: 0.05 … 5.26 mm², torque: 0.5 Nm Nominal voltage per channel: 115 … 230 V AC
Inrush current: 500 A peak / 2 ms Max operate frequency per channel: 10 ops. / min |
8 x SPST feed-through latching relay with manual override, rising cage clamp for solid and stranded wire, wire gauge: 0.05 … 5.26 mm², torque: 0.5 Nm Nominal voltage per channel: 115 … 230 V AC
Inrush current: 500 A peak / 2 ms Max operate frequency per channel: 10 ops. / min |
||||||||||||||||
| Measured data |
Voltage, current, power (active, apparent, reactive), power factor, energy (active), phase, line frequency, status |
Voltage, current, power (active, apparent, reactive), power factor, energy (active), phase, line frequency, status |
||||||||||||||||
| Measurement tolerance |
± 3 % |
± 3 % |
||||||||||||||||
| Serial port |
Modbus RTU / ASCII (RS-485), 3-pin pluggable connector |
Modbus RTU / ASCII (RS-485), 3-pin pluggable connector |
||||||||||||||||
| USB port |
1 x Mini-USB, Type B |
1 x Mini-USB, Type B |
||||||||||||||||
| User interface |
Combined LED for data activity and device status |
Combined LED for data activity and device status |
