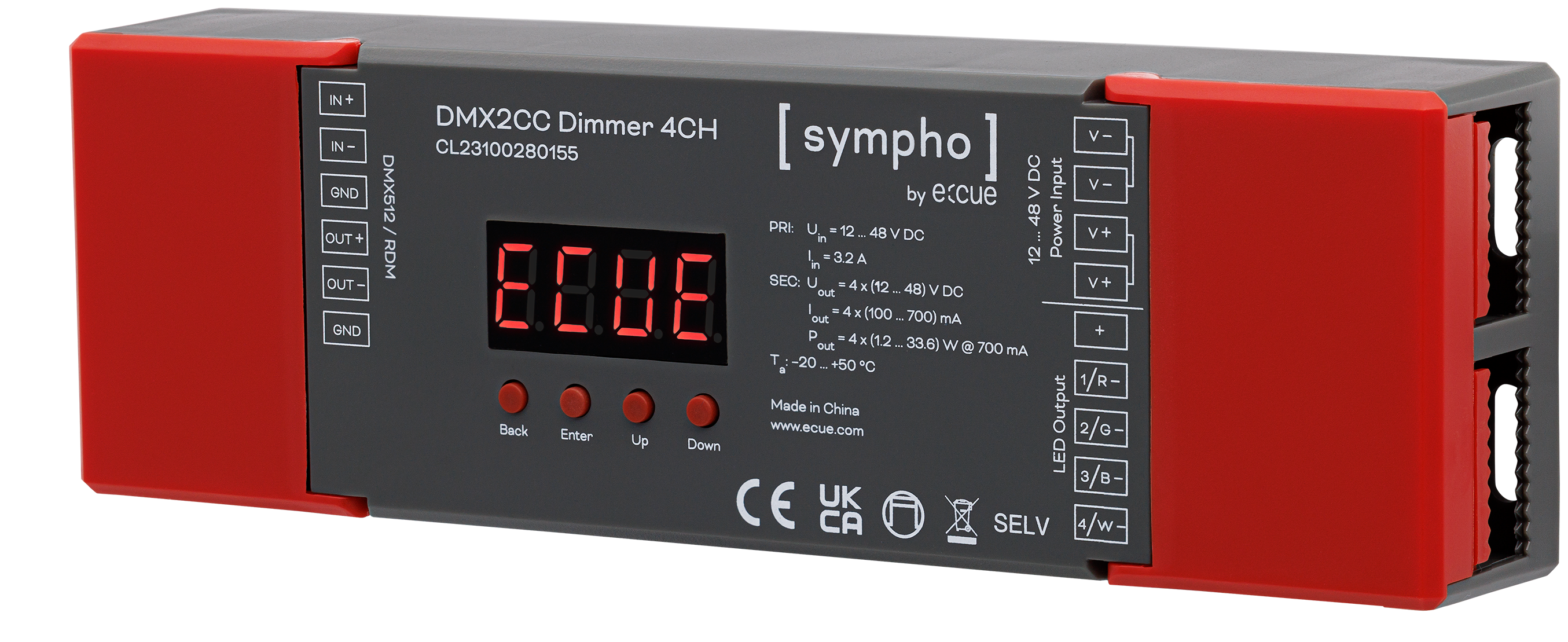

4 Channel Constant Current Dimmer with DMX
IC: CL23100280155
Certifications & Approbations
Specification Sheets
The tool to realize simple to highly sophisticated architectural lighting control projects – one software fits all!
A two-channel DMX and RDM interface which can be used with e:cue’s lighting control software SYMPHOLIGHT.
Extends the successful Butler series with the inclusion of a DMX512 system, which is especially suitable for less complex applications in standalone mode.
A DMX engine which can be used either in standalone mode to replay and loop previously uploaded lighting shows, or as a DMX output device.
| Dimensions (W x H x D) | 170 x 53.4 x 28 mm / 6.69 x 2.09 x 1.1 in |
| Weight | 170 g |
| Power input | 12 … 48 V DC (4-pin terminal) |
| Operating Temperature | -20 … 50 °C / -4 … 122 °F |
| Storage Temperature | -40 … 85 °C / -40 … 185 °F |
| Operating Humidity | 5 … 95% RH, non-condensing |
| Housing | PC |
| Certification | CE, UKCA, RoHS, UL Listing pending |
| Input | 1 x DMX512 / RDM (3-pin terminal), isolated, surge protected |
| Output | 1 x DMX512 / RDM (3-pin terminal) for chaining multiple devices (max. 256), isolated, surge protection 4 x constant current channel (5-pin terminal) + connector: identical to input voltage – connector: low side switch |
| Output current | 100 … 700 mA per channel, selectable with 10mA increment |
| Output voltage |
3 … 12V @ 12V input, |
| Output power | 1.2 … 25.2 W @ 700 mA per channel |
| Output dimming curve gamma | 0.1 … 9.9 |
| Connection type | Spring terminal connectors |
