Our SYMPHONY platform offers full spectrum lighting to increase the available colour gamut, colour fidelity and offer a tailored colour profile.

The SYMPHONY platform is built around four key principles.

Create unique colours not possible with RGBW, extending the range of traditional colour mixing to create pastels and new colours with greater saturation or, simply mix the same colour using different colour recipes with different spectral content.

Featuring an expanded colour gamut thanks to the additional primary LED colours, as standard we include Deep Red, Green, Royal Blue, Violet, Cyan, Lime and Amber. Other configurations are also available

Deep Red

Green

Blue

Violet

Cyan

Lime

Amber

Deep Red

Green

Blue

Violet

Cyan

Lime

Amber

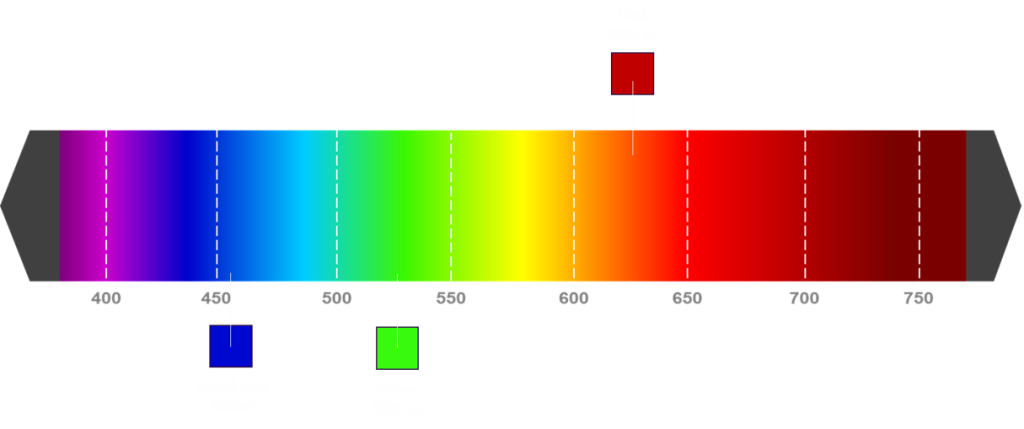

RGB Dominant Wavelengths

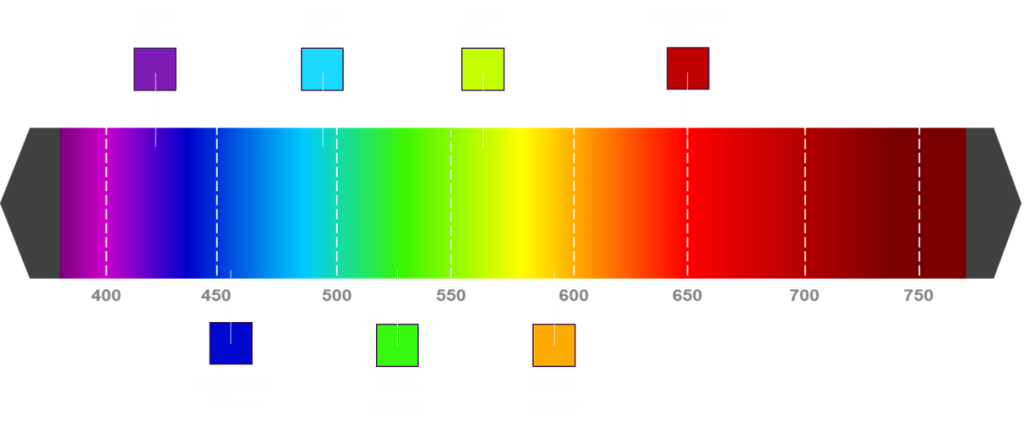

SYMPHONY DGBVCLA Dominant Wavelenghts

Create your own customised array of colour options with 7 primary colour LED postitions.

Create “signature” brand specific colours with saturation and punch way beyond whats possible with traditional RGB/RGBW colour mixing.

Choose your seven colours from the options below.*

*Note: Not all colour combinations are possible.

Deep Red

Red

Orange

Amber

Lime

Green

Cyan

Mid Blue

Blue

Violet

2700K

3000K

4000K

5700K

6500K

Deep Red

Red

Orange

Amber

Lime

Green

Cyan

Mid Blue

Blue

Violet

2700K

3000K

4000K

5700K

6500K

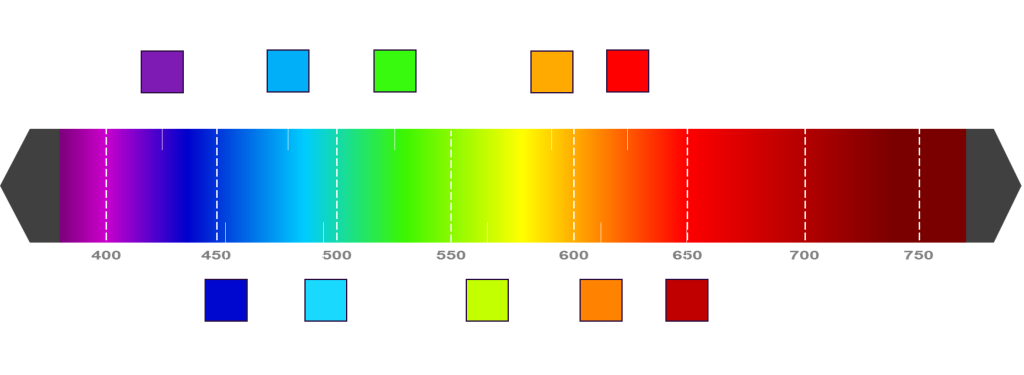

Customised Colour Options

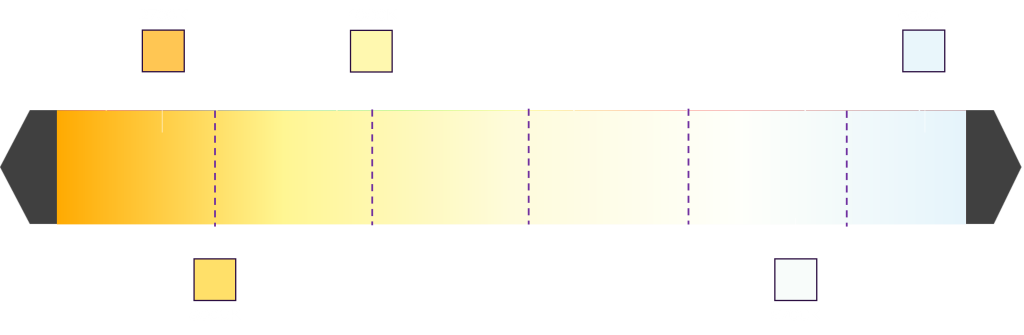

Customised White CCT Options

When it comes to white, with SYMPHONY, we have it covered, with “High Fidelity” whites.

SYMPHONY whites are mixed with “full spectrum” light using our 7-colour led array, which achieves very high fidelity, with accurate, faithful reproduction of colour, see things as they truly are!

CRI > 93 From 2’200K to 2’700K

CRI > 95 From 2’700K to10’000K

CRI > 93

from 2’200K

to 2’700K

CRI > 95

from 2’700K

to 10’000K

Enhance the beauty with SYMPHONY, create more visual impact and dimension with more vibrant high gamut whites.

When compared to Narrow spectrum lighting (Single LED CCT) which can leave buildings, brands, or items with red tones looking flat, muted or desaturated, SYMPHONY utilises full spectrum white light to enhance red detail whilst maintaining the white CCT.

Rg ~120 from 2’000K to 6’500K

Rg ~120

from 2’000K

to 6’500K

The SYMPHONY Difference

The SYMPHONY platform can be used in many versatile ways to deliver colour and white lighting solutions for the most demanding projects:

Extend the range of colours you are able to create over traditional RGB/W colour systems. See unique colours and colour depth like never before!

Customise your colour to follow your companies branding or highlight certain architectural features revealing hidden details.

Visual precision with our High Fidelity whites where accurate colour rendering is of utmost importance, free from those colour hues of pinkish, blueish or greenish whites you might see with an RGB system; SYMPHONY features 7 distinct colour LEDs to produce high fidelity white light with exceptionally rich spectral content. Even higher CRI than traditional single CCT whites.

High Gamut white lighting to maintain white CCT, but to bring our the beauty of red surfaces or items. Make your project warmer, more saturated, more lifelike, see the subtle textures and tonal variations for a more three dimensional, vibrant, visual experience.

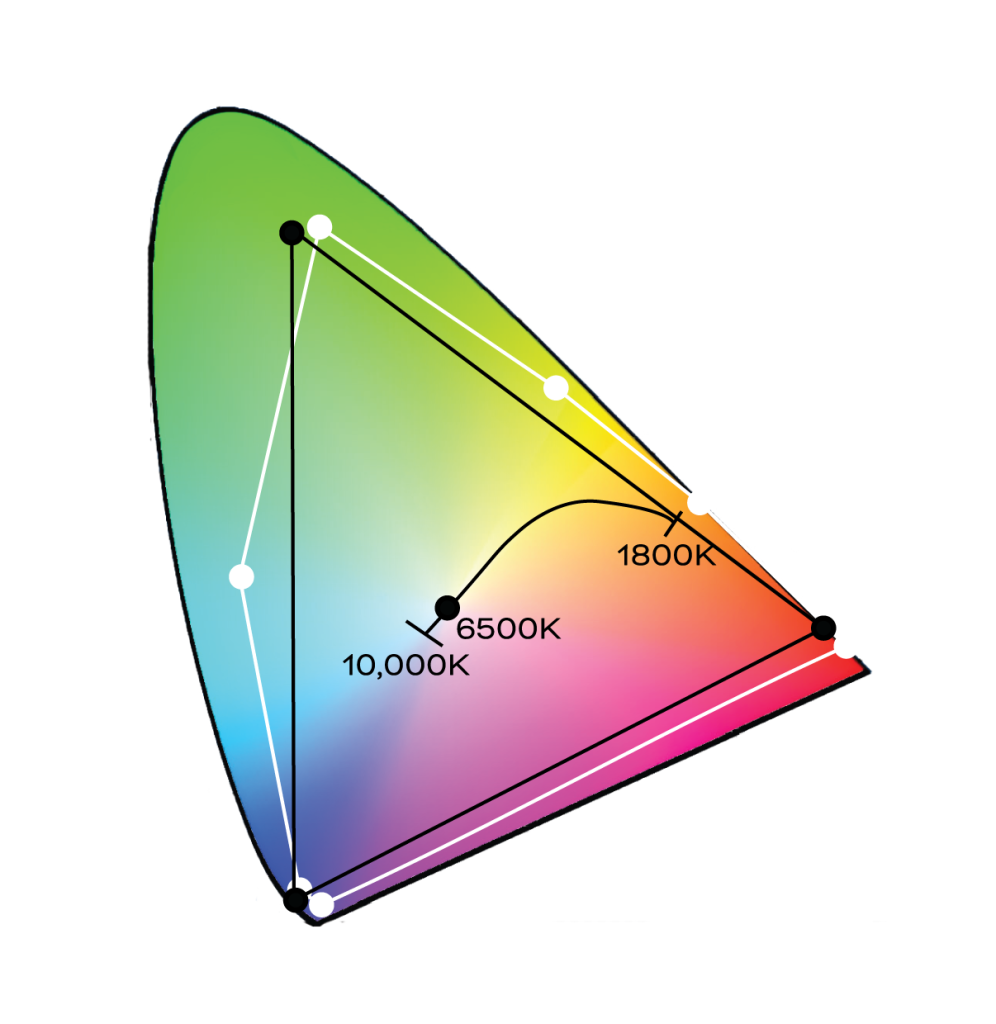

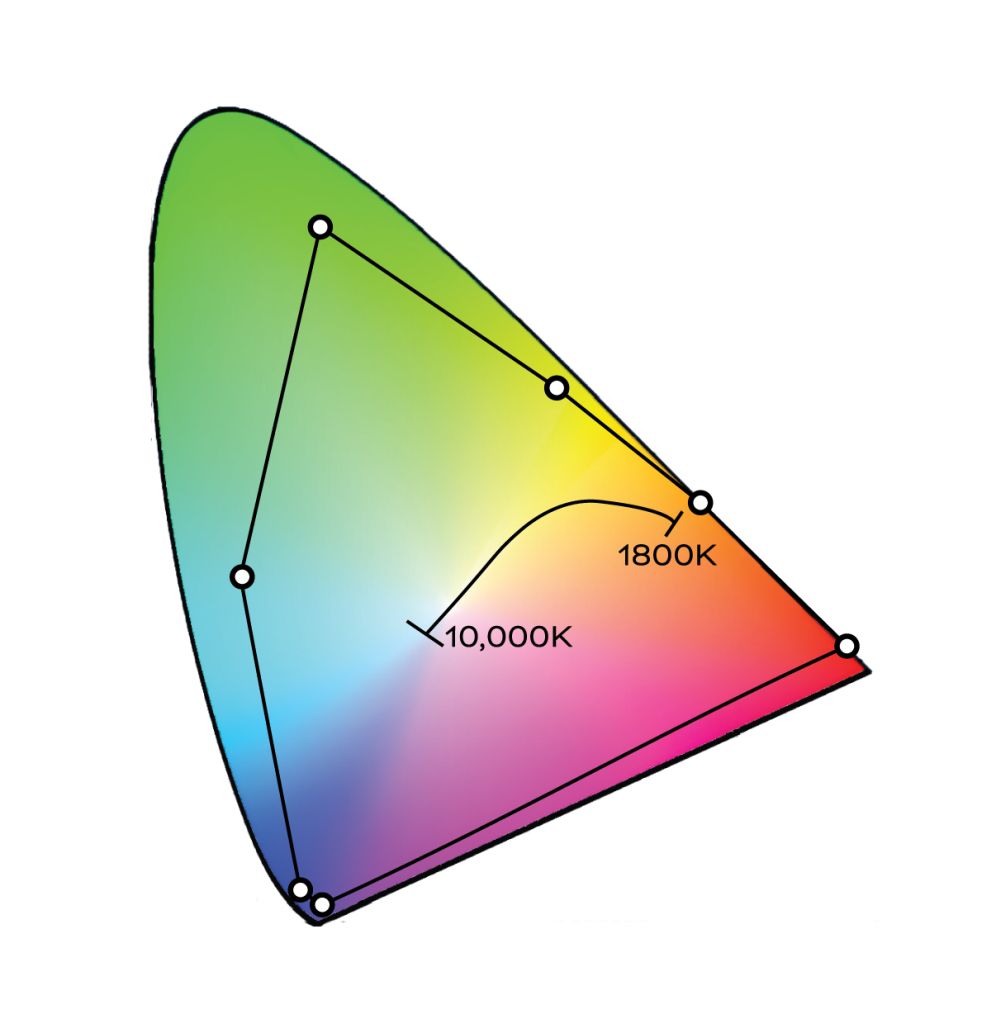

CIE Chart

Expanded Gamut, More Colour! High Colour Rendering

CRI >90 from 1’800K to 2’200K

CRI >93 from 2’200K to 2’700K

CRI >95 From 2700K to 10’000K

RGBW

SYMPHONY DGBVCLA

RGBW vs SYMPHONY DGBVLCA

CIE Chart

Expanded Gamut, More Colour! High Colour Rendering

CRI >90 from 1’800K to 2’200K

CRI >93 from 2’200K to 2’700K

CRI >95 From 2700K to 10’000K

RGBW

SYMPHONY DGBVCLA

RGBW vs SYMPHONY DGBVLCA

SPD Chart

Instead of the traditional three wavelength peaks for RGB, SYMPHONY produces a broad spectrum with a flatter, even distribution of the visible wavelengths.

RGBW

SYMPHONY DGVCLA

SPD Chart

More spectral content in single colour or mixed colours

RGBW

SYMPHONY DGVCLA

White Light Matters

Depending on your project needs, you may wish to choose High Fidelity (Rf) or High Gamut (Rg) lighting.

Example: You have a museum with lots of archaeological artifacts, how you light them has a direct influence on how the items is perceived.

Rf High Fidelity

Focused on accurate, faithful reproduction of colour, see things are they are truly are.

This lighting approach replicates colors as they would appear under natural daylight. It provides a highly accurate and true-to-life representation of the artifact’s original tones and hues—ideal for environments where authenticity is paramount.

Rg High Gamut

Rg and specifically Rg120 is focused on colour saturation. Enhance the beauty with more vibrant, saturated lighting for more visual impact.

High Gamut (Rg) lighting, in contrast, enhances color saturation and vibrancy. This creates a more visually striking display, emphasizing vividness for greater visual impact. It’s often used when the goal is to capture attention or evoke emotion through intensified coloration.

Here you will see a more classic example of the influence of colour fidelity and Gamut. Note how the High Gamut Apple is much more inviting.

CRI 70 (Low Fidelity)

CRI 100 (High Fidelity)

Rg 120 High Gamut

CRI 70 (Low Fidelity)

CRI 100 (High Fidelity)

Rg 120 High Gamut

High Gamut White

With more saturated full spectrum light, you can bring out and enhance the beauty of your buildings, monuments, galleries and more, see more depth and more detail whilst preserving the chosen CCT.

Narrow Spectrum Lighting (Single CCT LED):
The church is well and evenly lit, but the red tones are muted, you cannot see much depth to the building, it seems one dimensional or flat.

SYMPHONY Full Spectrum Lighting (7 Distinct LED Colours):
The church is well and evenly lit, but the red tones are this time are vibrant, the building has much more depth and multi dimensional. This is much more visually appealing with warm, rich tones .

Narrow Spectrum Lighting (Single CCT LED)
The church is well and evenly lit, but the red tones are muted, you cannot see much depth to the building, it seems one dimensional or flat.

SYMPHONY Full Spectrum Lighting (7 Distinct LED Colours)
The church is well and evenly lit, but the red tones are this time are vibrant, the building has much more depth and multi dimensional. This is much more visually appealing with warm, rich tones .

SYMPHONY isn’t just lighting — it’s total colour freedom, branding precision, and high-fidelity white in one powerful platform. Reveal every detail, honour every hue, and bring architecture vividly to life.

For more information on SYMPHONY, please contact your local sales office.
