SYMPHO DALI-2 Control Panel

DALI-2 control device with 2/4/8 push buttons according to IEC62386 standard.
Suitable for integration and in combination with DALI-2 compliant central control units
Multimaster capable, multiple modules can be installed on the DALI line
DALI bus powered; no extra power supply required

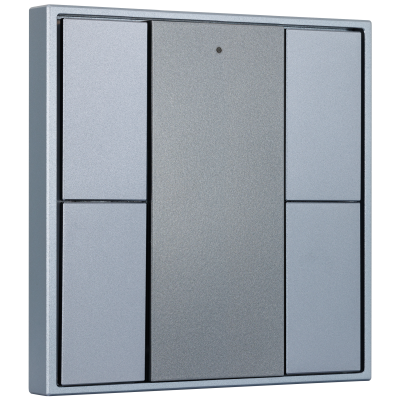

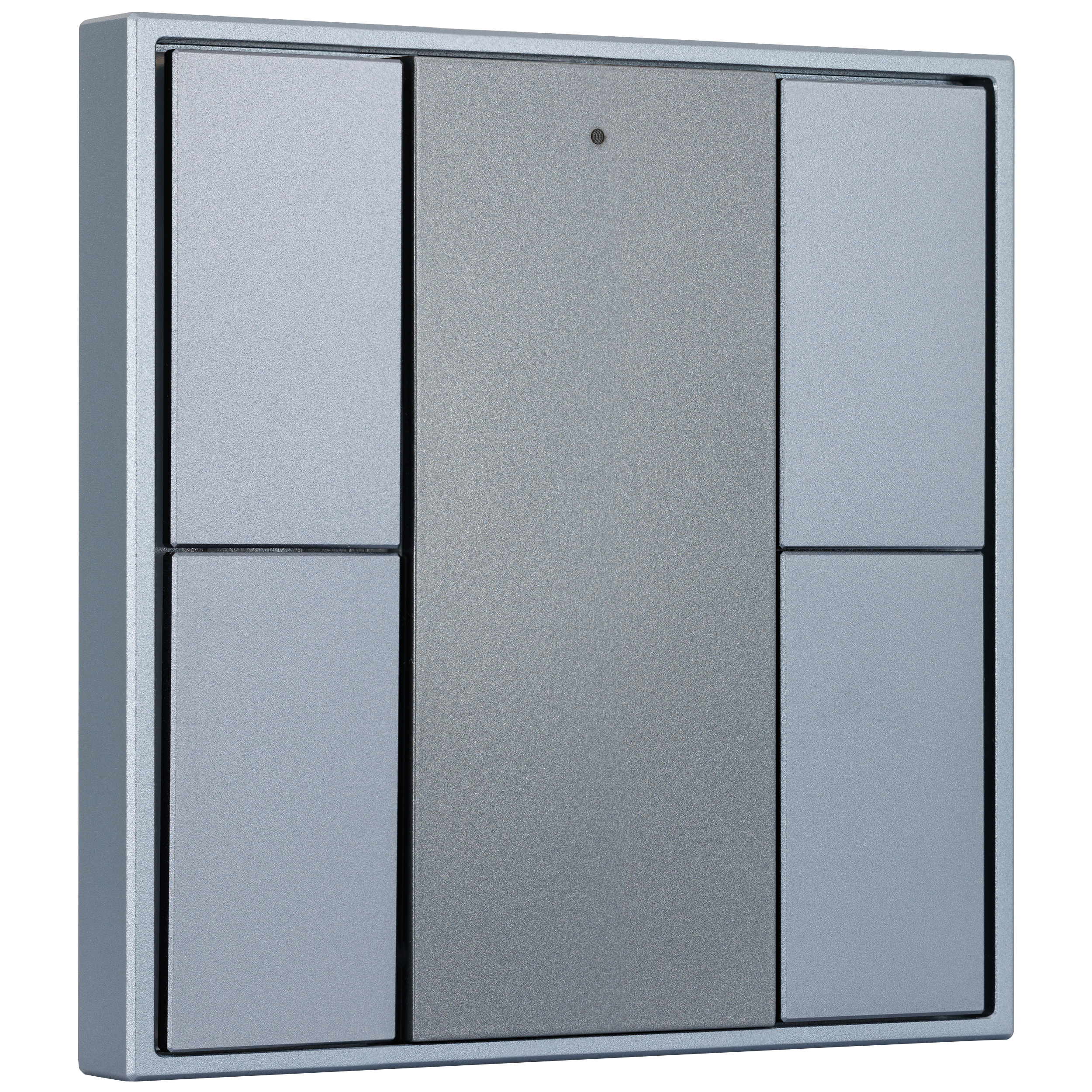

IC 4 Button metal: CL23100279055

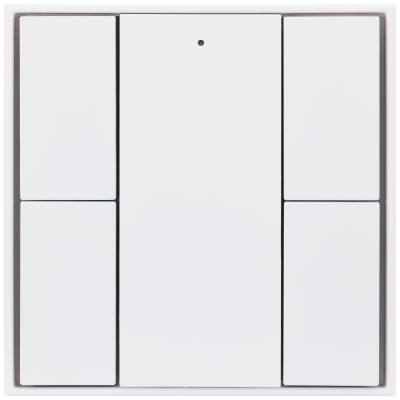

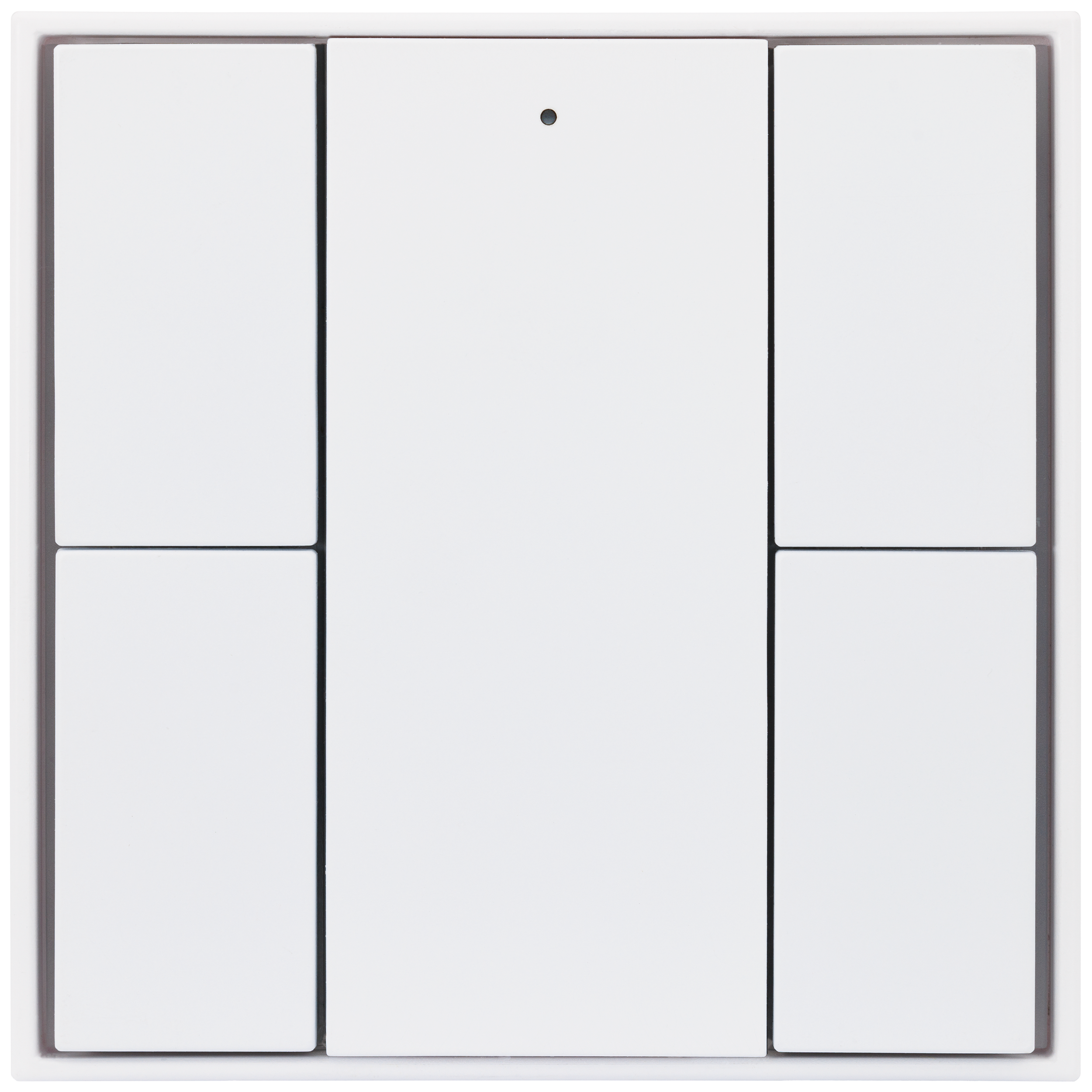

IC 4 Button white: CL23100279255

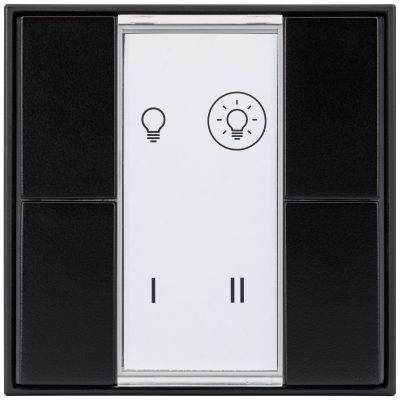

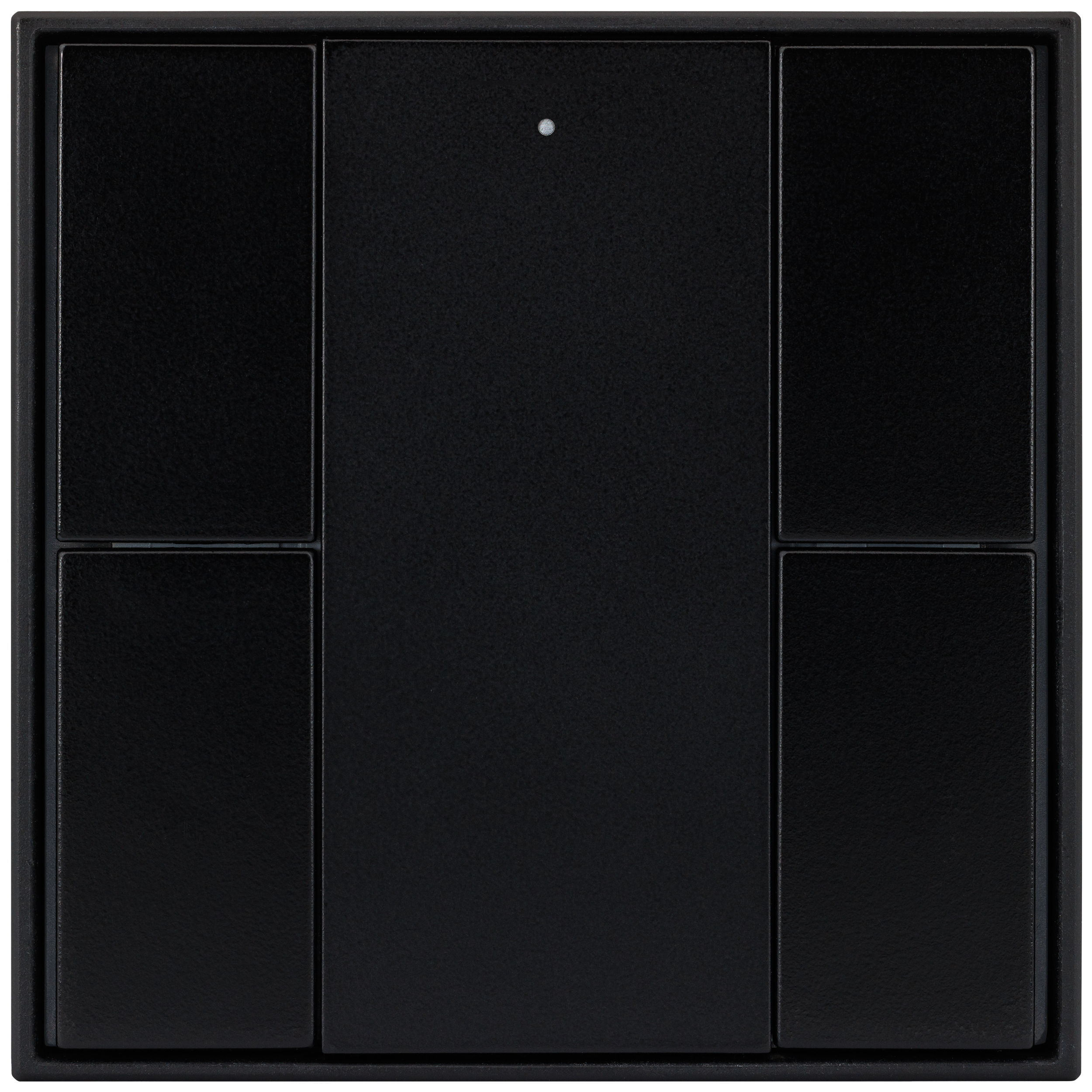

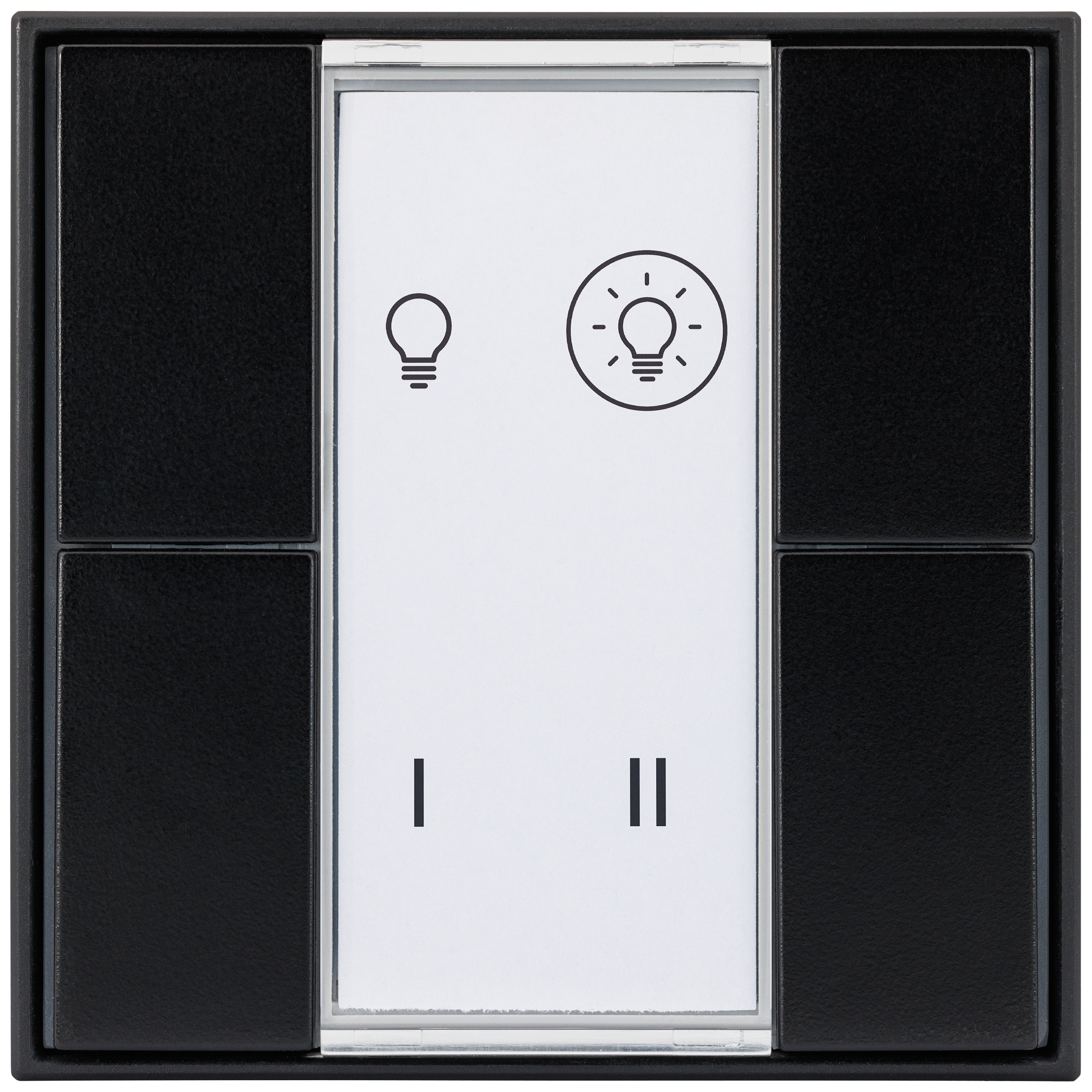

IC 4 Button black: CL23100279455

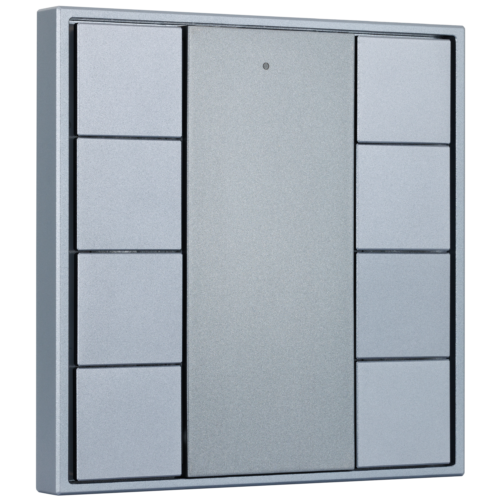

IC 8 Button metal: CL23100279155

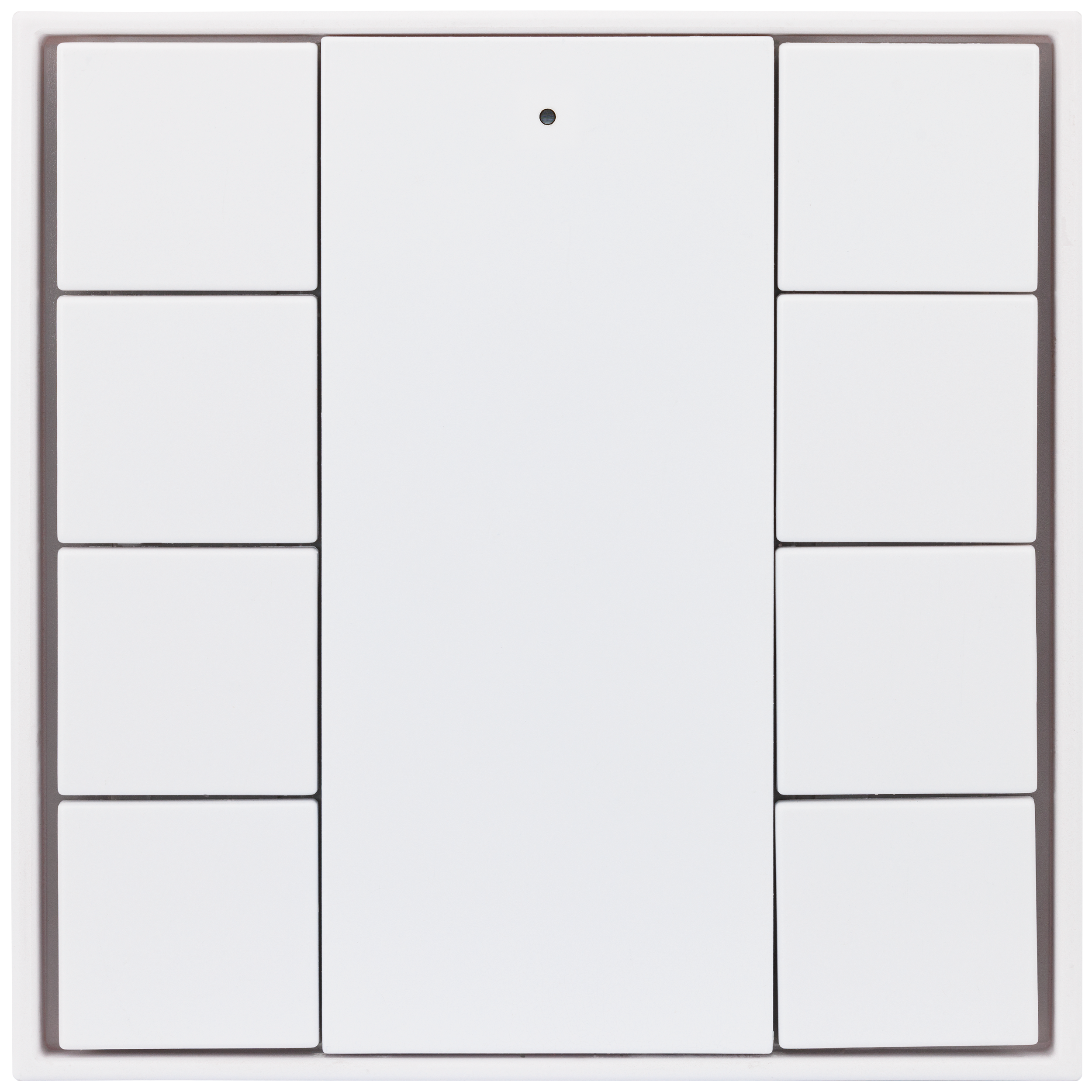

IC 8 Button white: CL23100279355

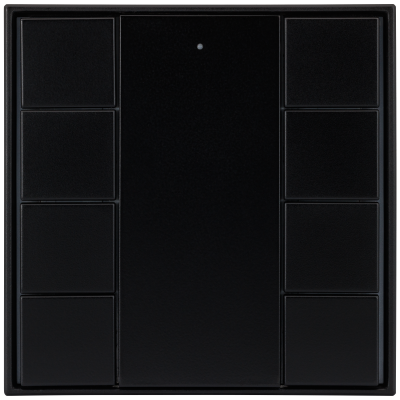

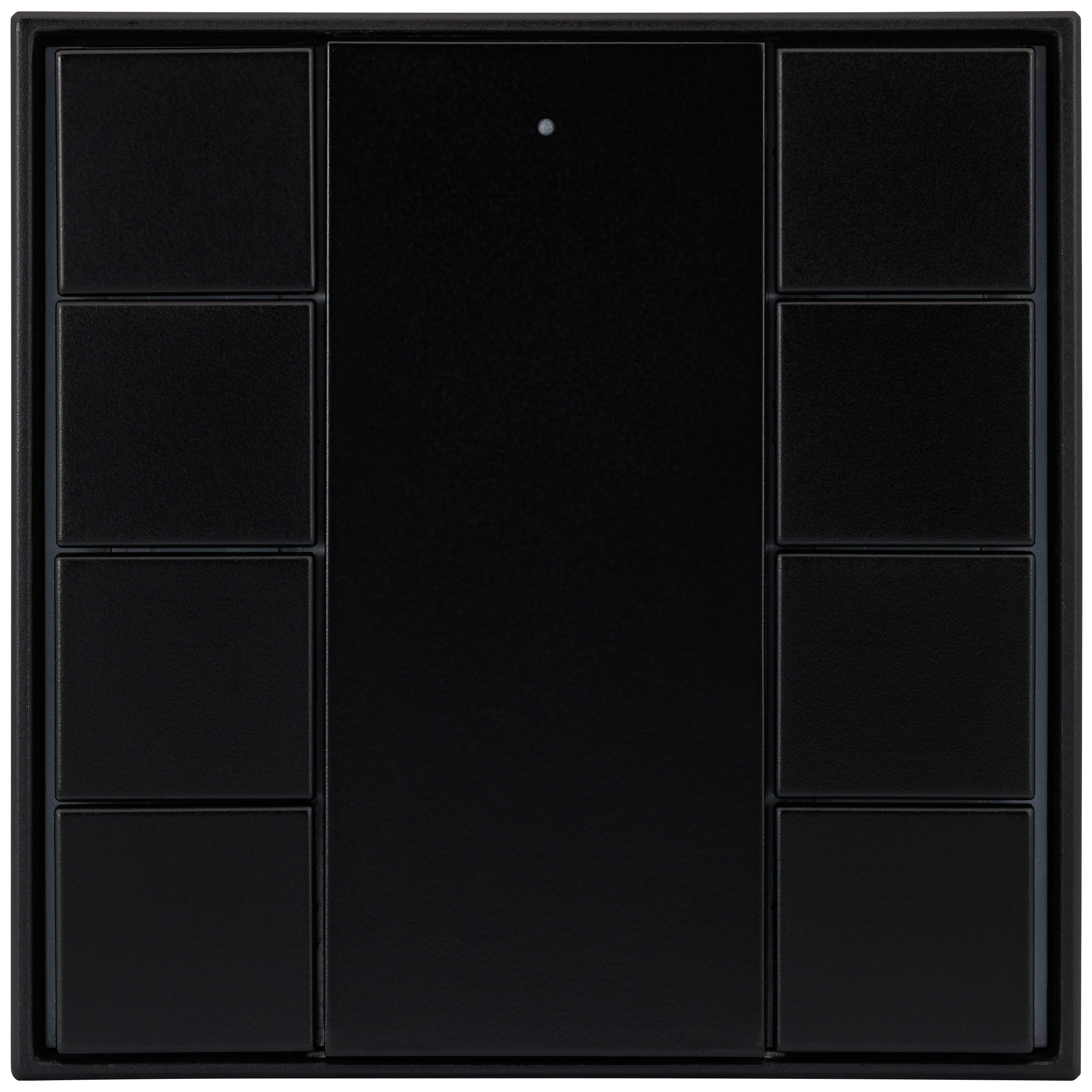

IC 8 Button black: CL23100279555

Specification Sheets

Manuals

CAD Files

Conformity

Support Files

	4-Button Panel	8-Button Panel
IC	metal (CL23100279055) white (CL23100279255) black(CL23100279455)	metal (CL23100279155) white (CL23100279355) black (CL23100279555)
Voltage range	12 V DC – 22.5 V DC (according IEC62368-101)	12 V DC – 22.5 V DC (according IEC62368-101)
Input type	DALI	DALI
Typ. current consumption DALI (at 16.5 V)	2 mA	2 mA
Number of addresses for DALI control gear	DALI	DALI

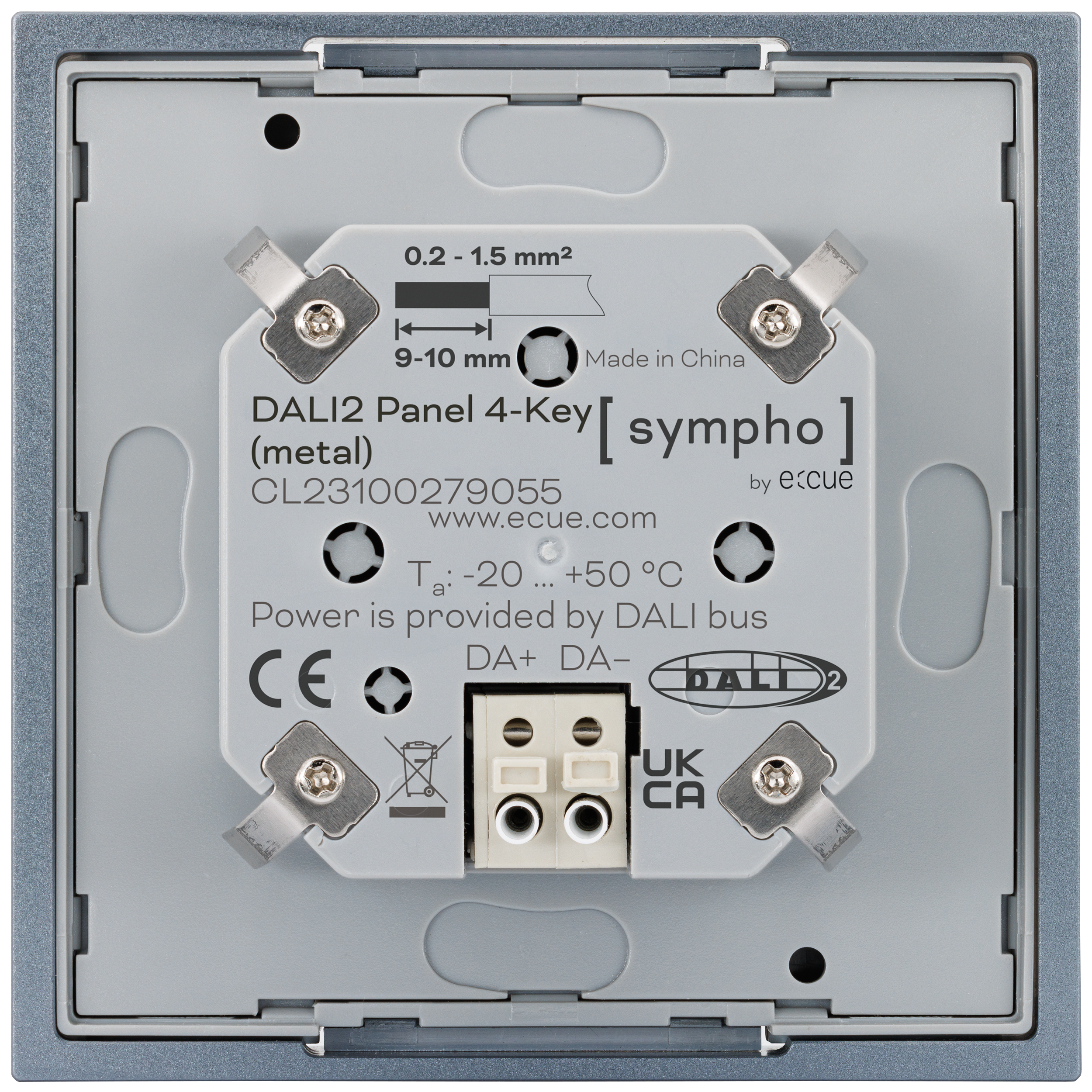

Connection type	Push-In	Push-In
Number of feedback LEDs	8 programmable LEDs	16 programmable LEDs
Number of addresses for DALI control devices	4 programmable push buttons	8 programmable push buttons
Storing temperature	-20 … +50 °C / -4 … 122 °F	-20 … +50 °C / -4 … 122 °F
Working ambient temperature	-20 … +50 °C / -4 … 122 °F	-20 … +50 °C / -4 … 122 °F
Relative humidity	8 … 80 %	8 … 80 %
Max. current consumption DALI (Inrush current at 22.5 V)	10 mA	10 mA
Max. casing temperature Tc	75 °C / 167 °F	75 °C / 167 °F
Weight	black, white: 89,5 g metal: 101,4 g	black, white: 89,5 g metal: 101,4 g
Certifications	CE, DALI-2, UKCA, RoHS	CE, DALI-2, UKCA, RoHS
Protection class	II in Intended Use	II in Intended Use
Protection degree terminals and housing	IP20	IP20

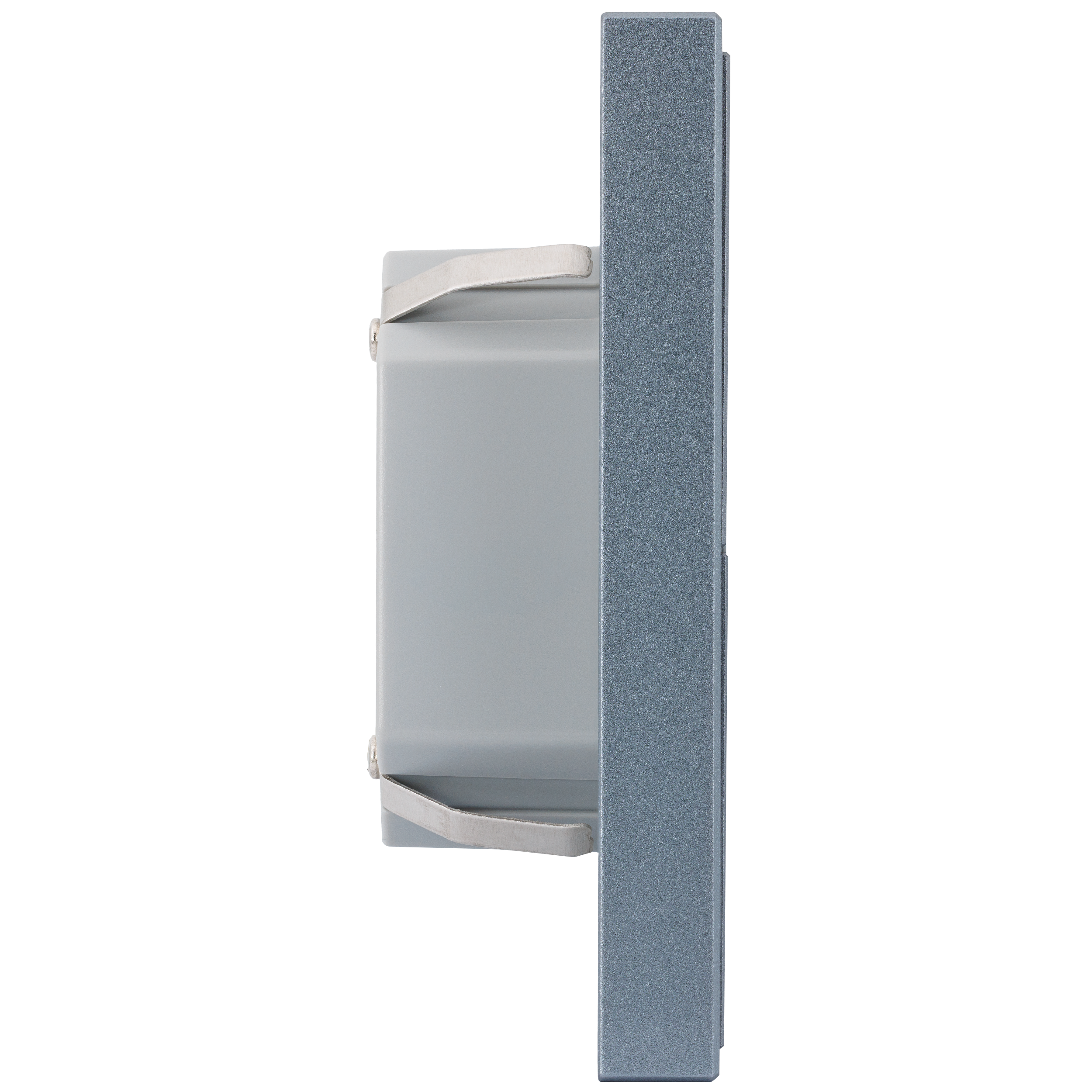

Dimensions (W x H x D)	80 x 80 x 26.6 mm /3.15 x 3.15 x 1.05 in	80 x 80 x 26.6 mm / 3.15 x 3.15 x 1.05 in
Mounting	Wall mount, suitable for most international in-wall mounted boxes	Wall mount, suitable for most international in-wall mounted boxes
