FUSION is the ultimate lighting controller, seamlessly merging dynamic and functional lighting control into one powerful device. Designed for flexibility, scalability, and simplicity, FUSION changes the way modern lighting systems are designed, programmed, and expanded.

One controller. Endless possibilities.

With four modular slots, Fusion gives you the freedom to configure your system to match any project, whether fully dynamic, purely functional, or any hybrid in between. Mix and match DMX and DALI modules as needed; everything is managed through one unified platform.

The Lighting Controller That Adapts to Every Space

✦ One System. Total Control.
Functional and Dynamic Lighting, All in One
✦ Make Rooms more exciting
Transform ordinary rooms into extraordinary spaces with bold, functional and color-rich dynamic lighting
✦ Maximize Space, Minimize Clutter
Compact Design helps save valuable space on-site, keeping installations clean and efficient
✦ Future-Proof Flexibility
Easily extend or upgrade your system anytime. React quickly to project changes without costly downtime

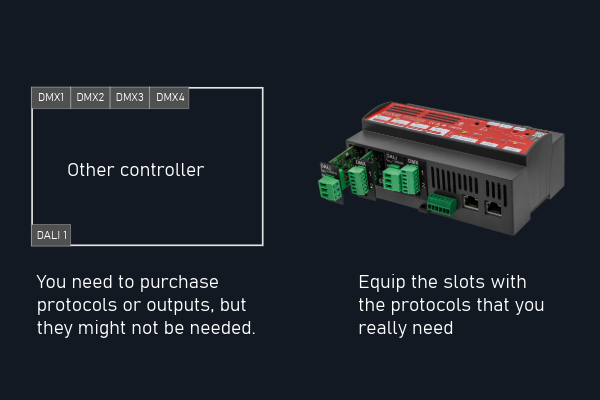

✦ Only Pay for What You Use
Modular pricing mode lets you invest only in what your project truly needs – no wasted budget

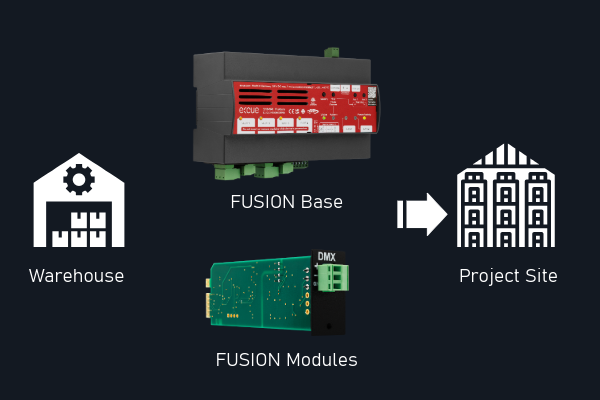

✦ Smart Stock Management
Stock just the base unit. Install additional modules as needed based on specific project requirements – streamlining inventory and boosting efficiency

4 x Modular slot cards per device, different options available: DMX512 Module, DALI-2 Module, 0 ... 10 V / 1 ... 10 V SPI, Relay, Serial (coming soon)
Free configuration and combination of slot cards

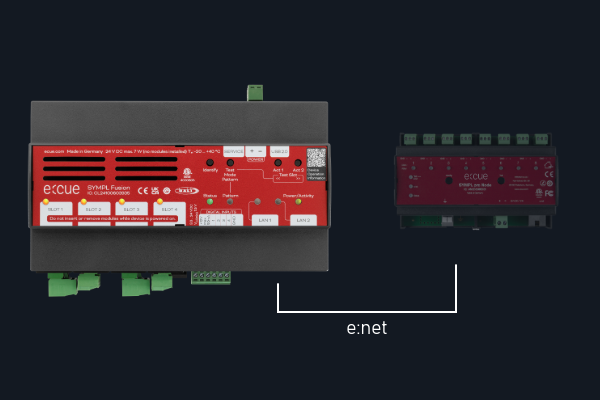

2 x Ethernet for daisy chaining or independent operation
4 x Digital inputs
2 x Freely assignable versatile buttons
2 x Buttons for direct test mode – no software needed
Integrated RTC including astronomical clock and daylight savings
Expandable with additional SYMPL devices via network
Art-Net or sACN output
BACnet / KNX interface via additional Gateway

Whatever setup your project requires, the Fusion
always has the right configuration at hand. The modular slot
card concept allows the freedom to compose your individual
demands. The Fusion can be used as a simple standalone
controller, expandable in a network with other e:cue devices,
or as a decentralized control unit linked to multiple others.
The SYMPL Fusion is the right choice for all lighting control
requirements, functional lighting, dynamic lighting control or if
needed the combination of both!

IC: CL24100603935

Specification Sheets

EN_SYMPL_Fusion_Spec_v1p5

Manuals

EN_SYMPL_Fusion_Setup_v1p0

Marketing Materials

EN_ecue_Fusion_Product Flyer

CAD Files

SYMPL Fusion Side

SYMPL Fusion Top

SYMPL Fusion Side Slots

SYMPL Fusion Side Power

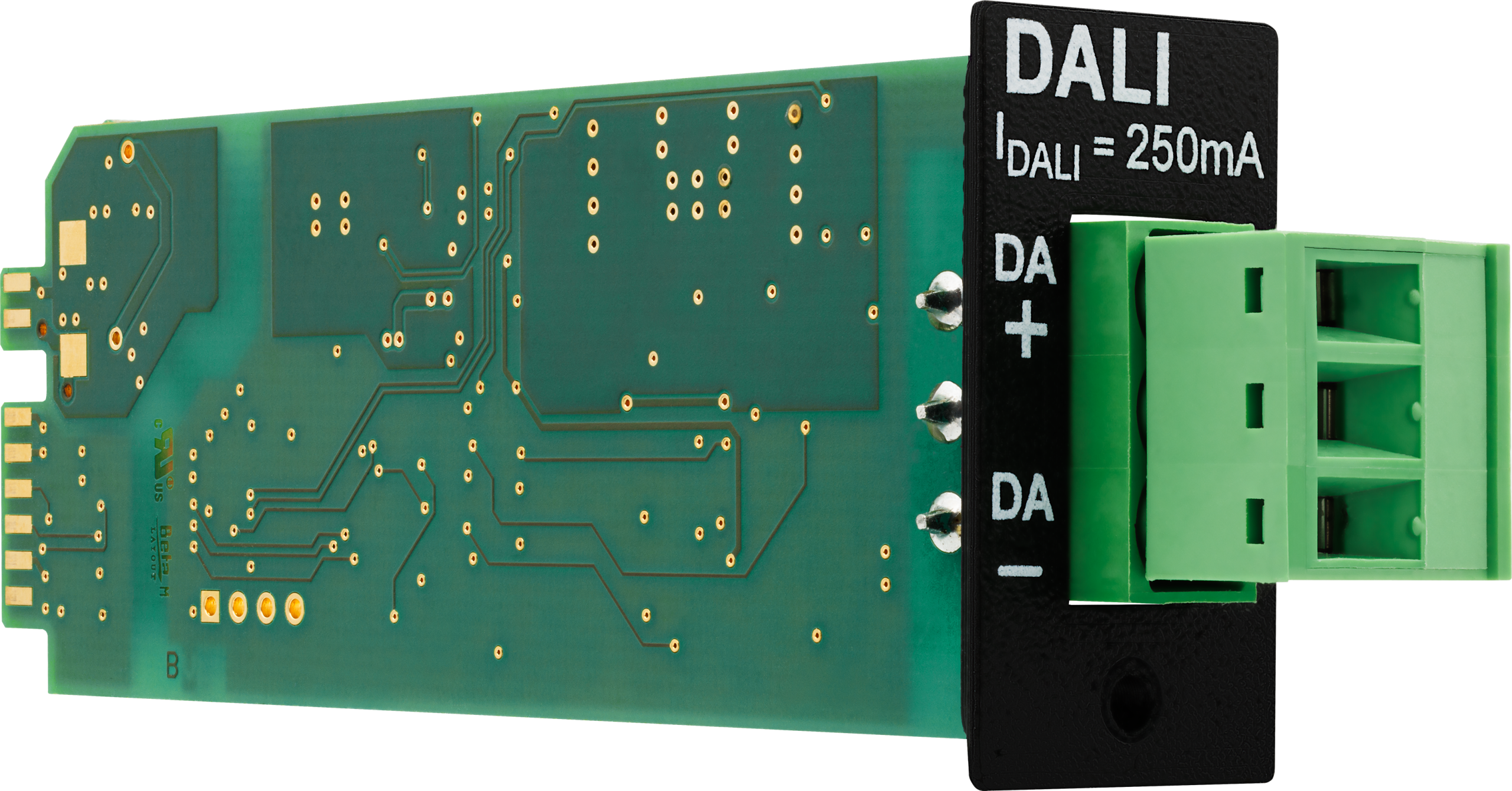

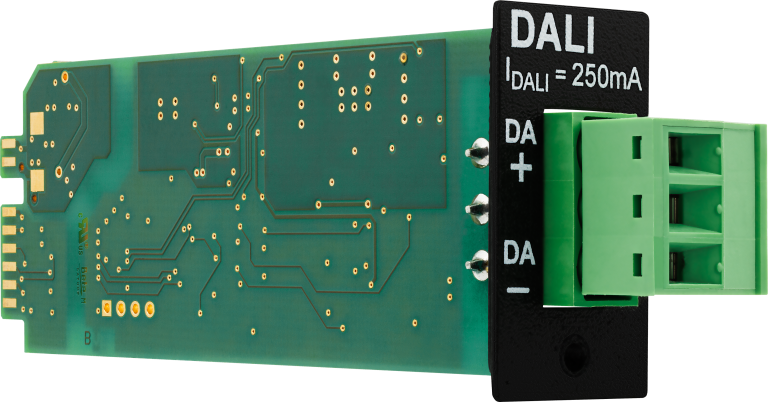

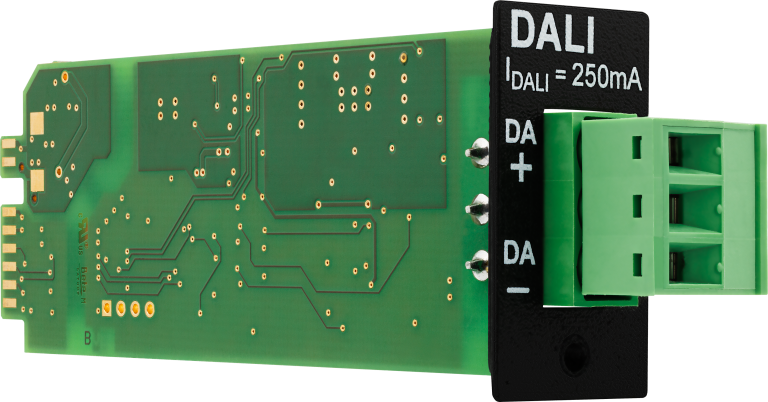

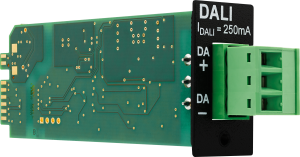

SYMPL Fusion DALI-2 Module 1 Port

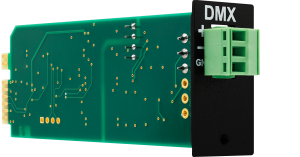

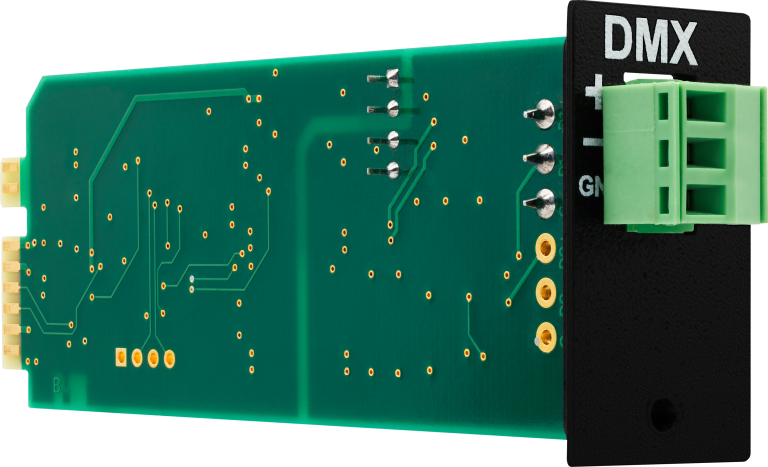

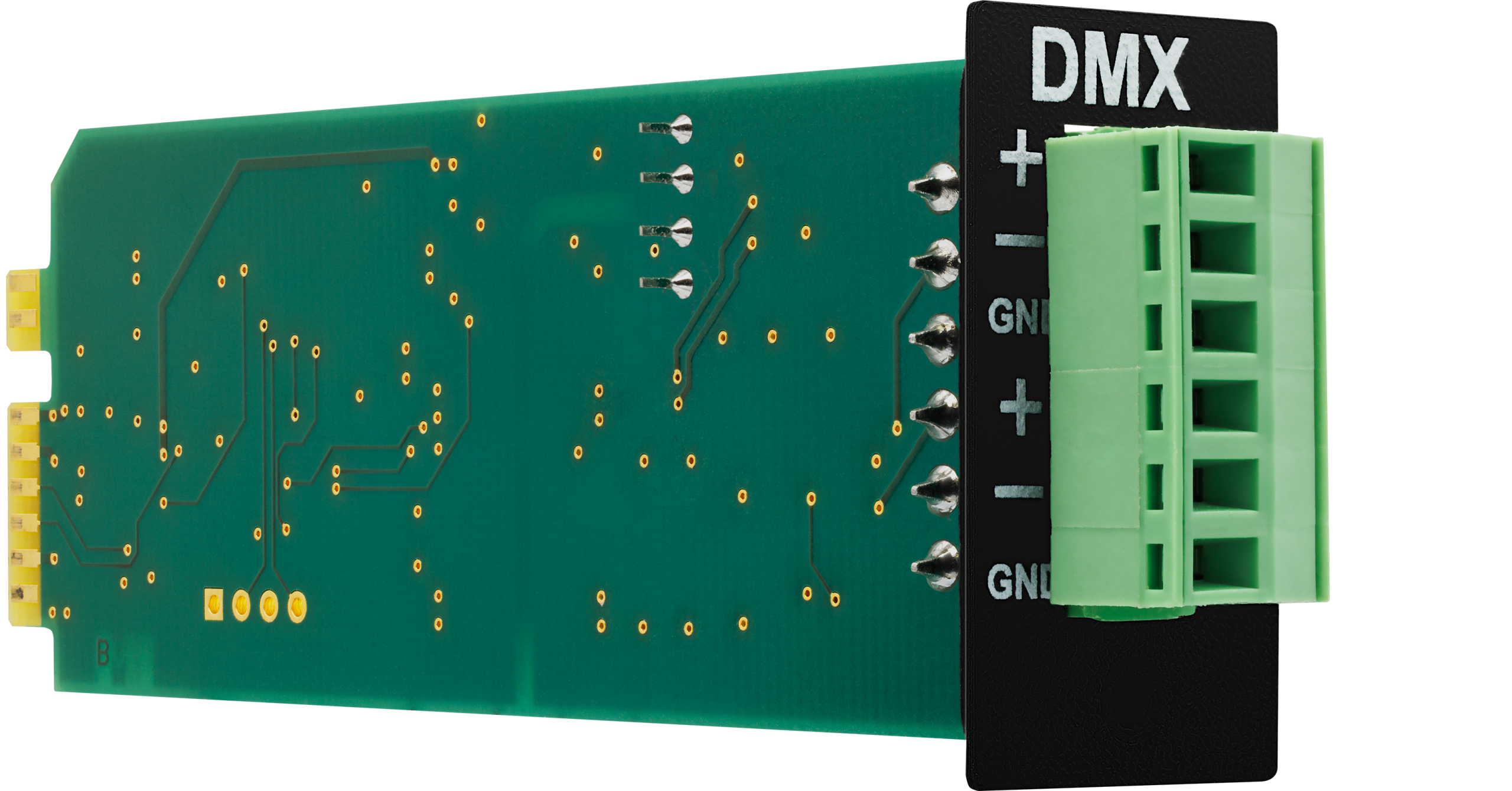

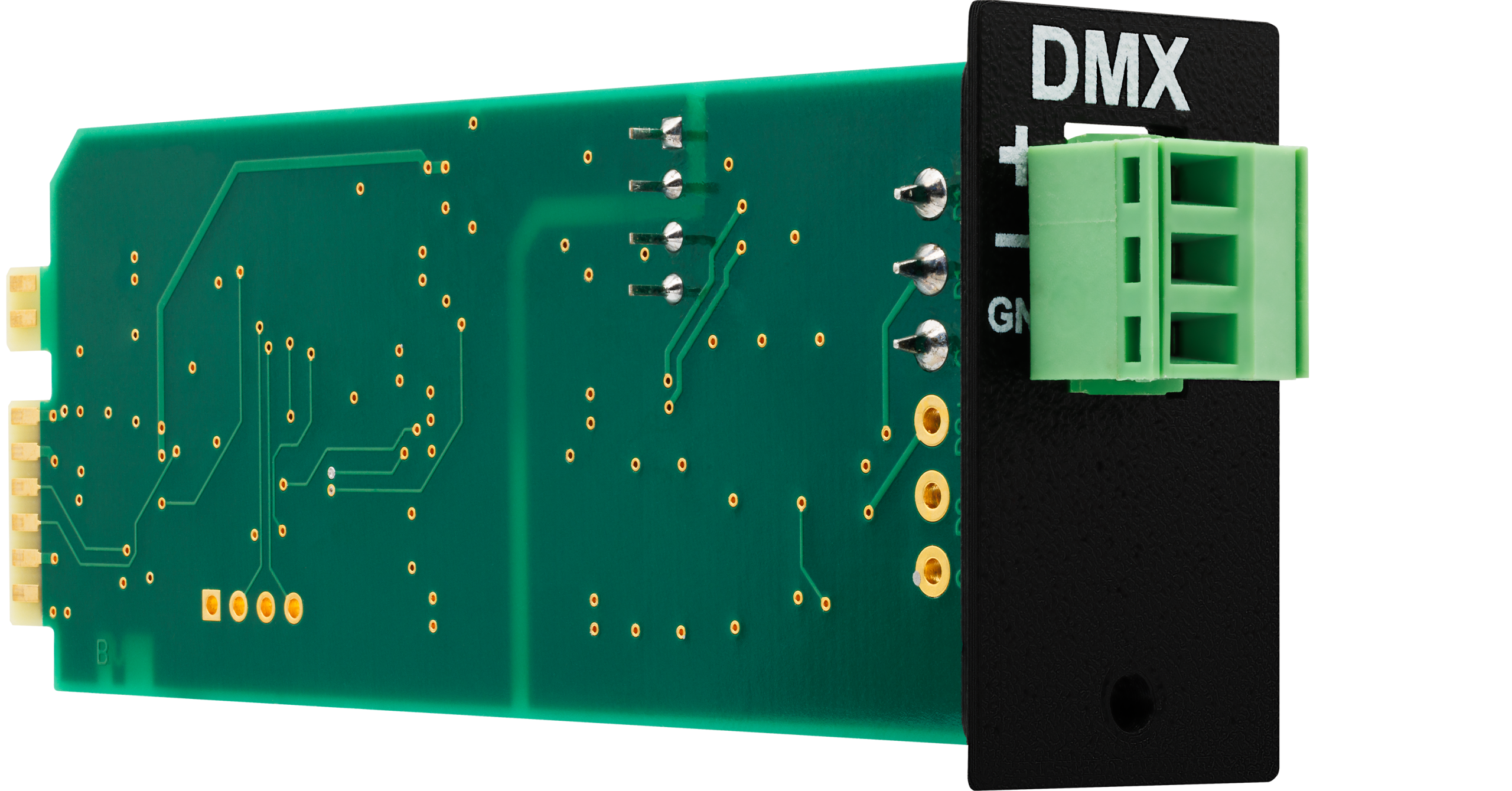

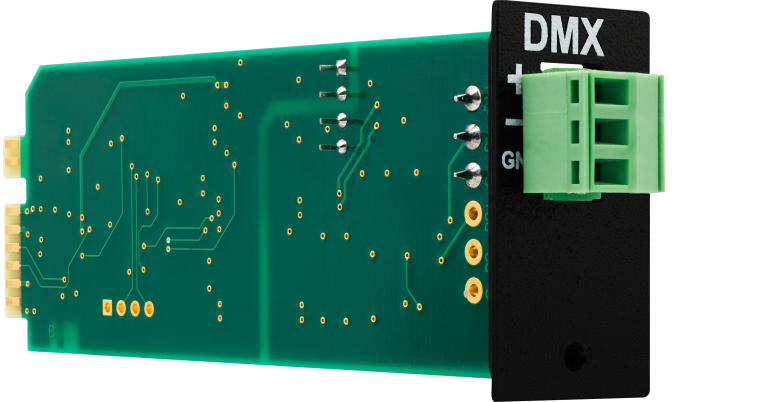

SYMPL Fusion DMX512 Module 1 Port

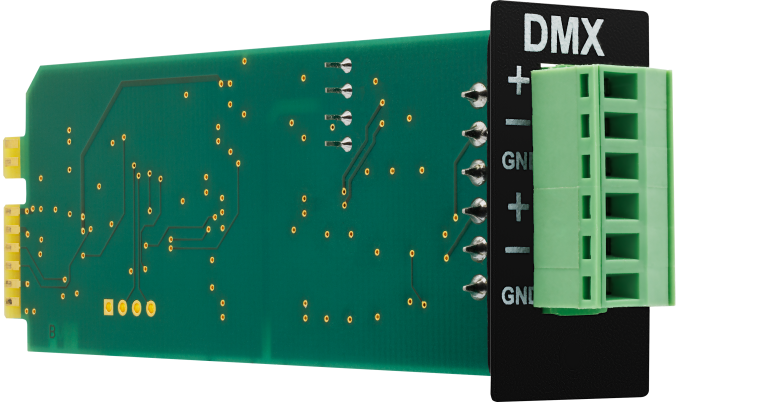

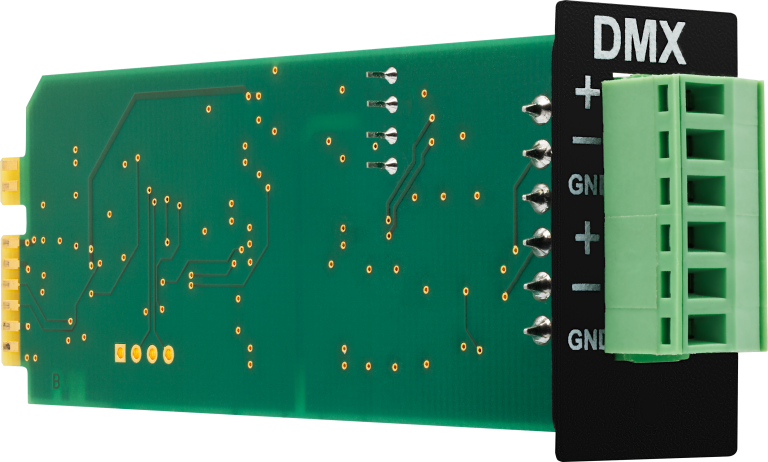

SYMPL Fusion DMX512 Module 2 Port

Conformity

EU-Declaration of Conformity SYMPL_Fusion_V1.0

System Topology

Specs

Dimensions (W x H x D)

160 x 90 x 60 mm / 6.3 x 3.54 x 2.36 in (without fastening clip)

Weight

250 g / 0.55 lb

Power Supply Input

24 V DC on terminal plug, wire gauge: 0.2 … 1.3 mm²

Power Consumption

Max. 30 W @ 4 x DALI-2 modules @ full load

7 W @ no modules

Operating Temperature

-20 … 40 °C / -4 … 104 °F

Storage Temperature

-20 … 70 °C / -4 … 158 °F

Operating/Storage Hum.

0 … 80% non-condensing

Cooling

Fanless, convection

Protection Class

IP20

Electrical Safety

SELV

Housing Material

Self extinguishing blend PC/ABS

Mounting

on 35 mm DIN rails (EN 60715)

Certification

CE, UKCA, ETL (Conforms to ANSI/UL Std. 62368-1; Certified to CSA Std. C22.2 NO. 62368-1)

Output Interfaces

4 x Modular slot card, types:
DMX512
DALI-2 Module

Available Soon:

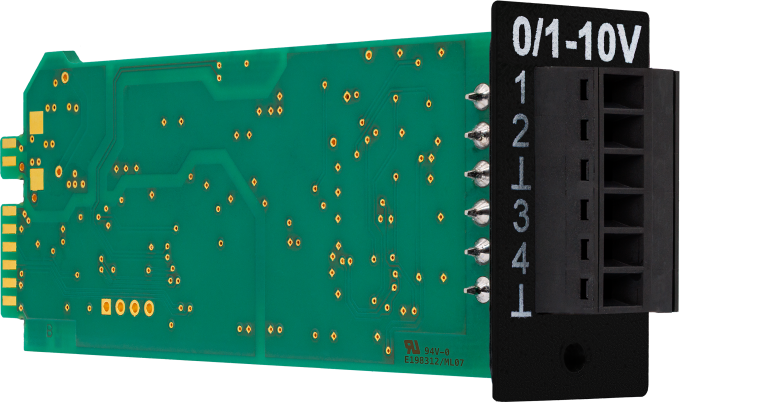

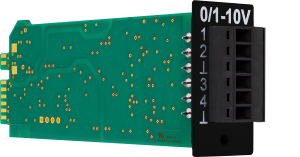

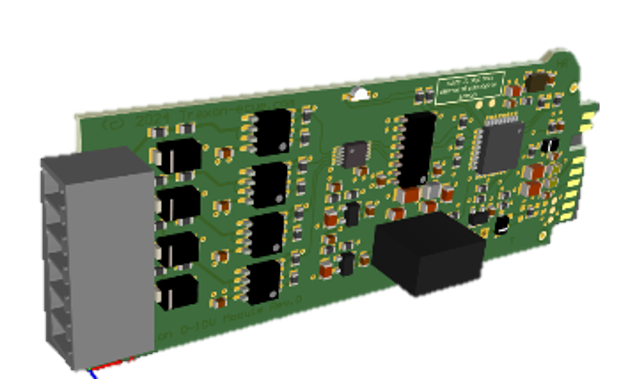

0 … 10 V / 1 … 10 V Module
SPI Pixel Module
Relay Module
RS232 / RS485 Module

Input Interfaces

4 x Digital input
common ground connector
terminal plug row
wire gauge: 0.08 … 1.31 mm²
max. input voltage 24 V DC

Input voltage	Input current
5 V DC	2 mA
12 V DC	6 mA
24 V DC	12 mA

12 V source: max. output current
50 mA
high level input threshold: 3 … 24 V
low level input threshold: 0 … 1 V

System Interfaces

2 x e:net / Ethernet, 10/100/1000 Mbit/s, RJ45, CAT shielded
2 x USB 2.0 Type A
1 x Service port (micro-USB)

User Interfaces

LEDs for Ethernet activity, device status, test pattern, power;
2 x Freely assignable versatile buttons
DMX & DALI test mode accessible with device button
1 x LED per slot card

Available Modules

All for your project

Sympholight

Control dynamic color illumination with DMX, huge media facades or even complex general lighting projects with DALI-2.

Symphocity

Full-scale platform that offers you a deep insight into and control over all of your functional and dynamic lighting assets.

Accessories

Perfectly matched to the e:cue hardware. Find cables, network switches, power supplies, rack accessories and much more for your project.
