SYMPL pro Node

The smart DMX/RDM controller for state-of-the-art lighting control projects has been specifically designed with tough outdoor environments in mind.

8 outputs for DMX512/RDM or e:pix or m:pix (dependent on model)
Highly isolated outputs
Integrated protection against surge (Level 3)
Protection against miswiring
Extended operating temperature -40 … 70°C*
Embedded temperature & humidity sensors
Reverse polarity protection
Backup-mode on data loss
Power-over-Ethernet
Test mode access via button

The SYMPL pro Node is an eight-channel DMX / e:pix / m:pix and RDM interface for use with e:cue’s lighting control solution SYMPHOLIGHT. It provides eight independent DMX/RDM interfaces for eight DMX512 universes with 4096 channels. Also available as e:pix version (16384 channels) and m:pix version (12288 channels). The SMYPL pro Node is especially designed for projects in tough outdoor environments. Connection to the server runs via Ethernet interface with 100 Mbit/s. The SYMPL pro Node can be powered by an external power supply or via Power-over-Ethernet. It is easily mounted on standard 35 mm DIN rails, or with a key hole in the housing base on walls or on any stable vertical surface. The SYMPL pro Node is a simple, reliable and easy to use interface solution for e:cue lighting control solutions with SYMPHOLIGHT.

IC: AM255360031 (DMX)
IC: AM305690031 (e:pix)
IC: CL24100000435 (m:pix)

Download

Specification Sheets

EN SYMPL pro Node DMXepix Spec v4p0

DE SYMPL pro Node DMXepix Spec v4p0

Manuals

EN SYMPL pro Node Setup v3p0

DE SYMPL pro Node Bedienungsanleitung v3p0

Tender Text

Tender Text – SYMPL pro Node

CAD Files

SYMPL pro Node Front

SYMPL pro Node Side

Conformity

EU-Declaration of Conformity SYMPL 8-port Nodes

System Topology

Specs

Dimensions (W x H x D)	143 x 92 x 62 mm / 5.63 x 3.6 x 2.4 in (excl. fastening clip)
Weight	250 g / .55 lb
Power Supply	24 … 48 V DC (terminal plug), reverse polarity protection or PoE IEEE 802.3af on RJ45
Power Consumption	Max. 8 W (incl. DMX termination)
Operating Temperature	-40 … 70 °C* / -40 … 158 °F*
Storage Temperature	-40 … 70 °C* / -40 … 158 °F*
Electrical Safety	SELV
Operating/Storage Hum.	0 … 80% non-condensing
Protection Class	IP20
Housing Material	Self extinguishing blend PC/ABS
Mounting	On 35 mm DIN rail (EN 60715) or with key hole on any stable vertical surface
Certification	CE, ETL, UKCA
Interface	8 x DMX512 Isolated in pairs Surge protection 3-pin terminal plug
Interface Specifications	V_DMXmax / V_DMXmin = 4.6 V / 0.8 V Short circuit protected: I_SCmax = 100 mA
Ethernet-Port	1 x e:net 10/100 Mbit/s, RJ-45 Surge protection
Sensors	Temperature -40 … 120 ±°C (0.2 °C) Humidity 0 … 100% (±2%)
User Interface	LEDs for error, Ethernet activity, device status, DMX/RDM status, Identify button, Test button

*70 °C for max. 1 hour/day; continuous operation at max. 60 °C.

All for your project

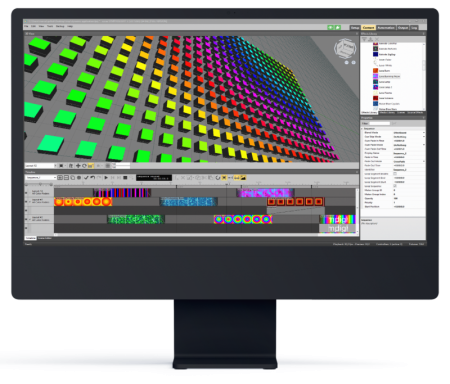

Sympholight

Control dynamic color illumination with DMX, huge media facades or even complex general lighting projects with DALI-2.

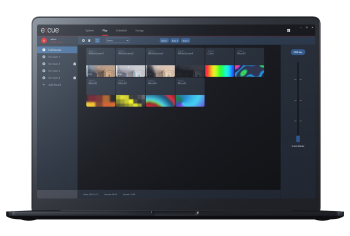

Symphocity
