e:touch 8” |
e:touch 10” |
| IC |
CL24100000255 |
CL24100001455 |
| Display size |
8 inch |
10 inch |
| Resolution |
800 x 1280 |
800 x 1280 |
| Brightness |
300 nt |
500 nt |
| Dimensions |
124 x 200 x 11 mm / 4.88 x 7.87 x 0.43 in |
173 x 240 x 11 mm / 6.81 x 9.45 x 0.43 in |
| Weight |
340 g / 0.75 lb |
790 g / 1.74 lb |
| Power supply |
12 V DC, 50 Hz
or PoE IEEE 802.3af on RJ45
|
12 V DC, 50 Hz
or PoE IEEE 802.3af on RJ45 |
| Power consumption |
24 W @ 12 V DC
13 W @ PoE |
24 W @ 12 V DC
13 W @ PoE |
| System interface |
1 x e:net / Ethernet 10/100 Mbit/s, RJ45 |
1 x e:net / Ethernet 10/100 Mbit/s, RJ45 |
| Sensor |
Proximity sensor |
Proximity sensor |
| Outputs |
Speaker |
Speaker |
| User interfaces |
Customizable UI (Buttons/Fader) via
e:cue software |
Customizable UI (Buttons/Fader) via
e:cue software |
| Operating temperature |
-10 … 50 °C / 14 … 122 °F |
-10 … 50 °C / 14 … 122 °F |
| Storage temperature |
-20 … 60 °C / -4 … 140 °F |
-20 … 60 °C / -4 … 140 °F |
| Op. / Stor. humidity |
0 … 75% RH, non-condensing |
0 … 75% Rh, non-condensing |
| Installation |
Indoor installation only |
Indoor installation only |
| Protection class |
IP20 |
IP20 |

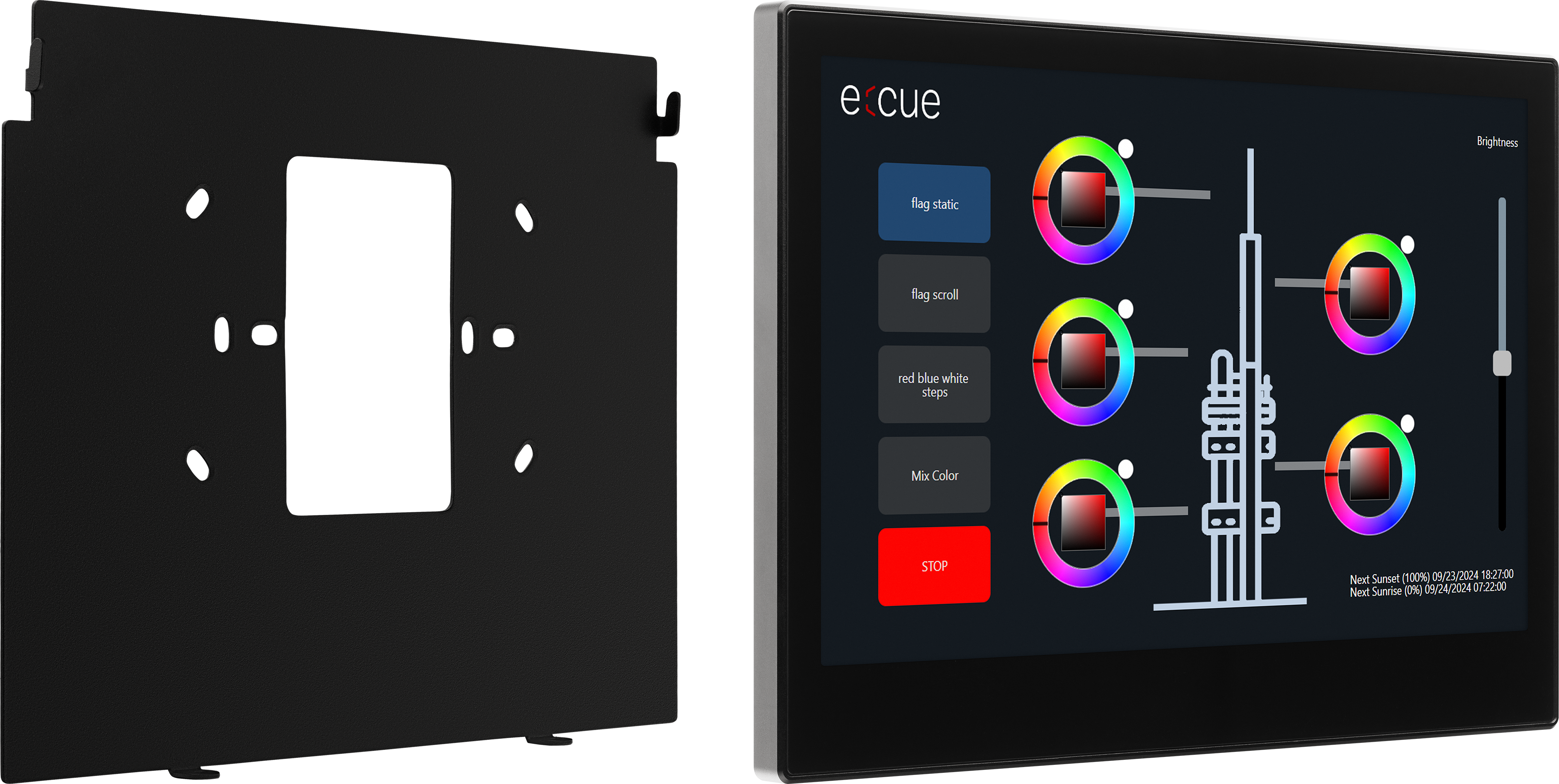

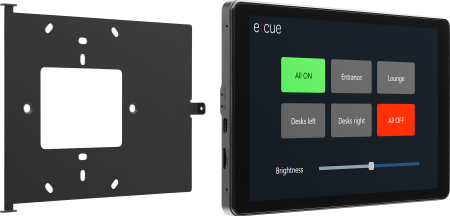

| Mounting |
Wall mount on standard in-wall-mounted boxes |
Wall mount on standard in-wall-mounted boxes |
| Certifications |
CE, UKCA, RohS |
CE, UKCA, RohS |
