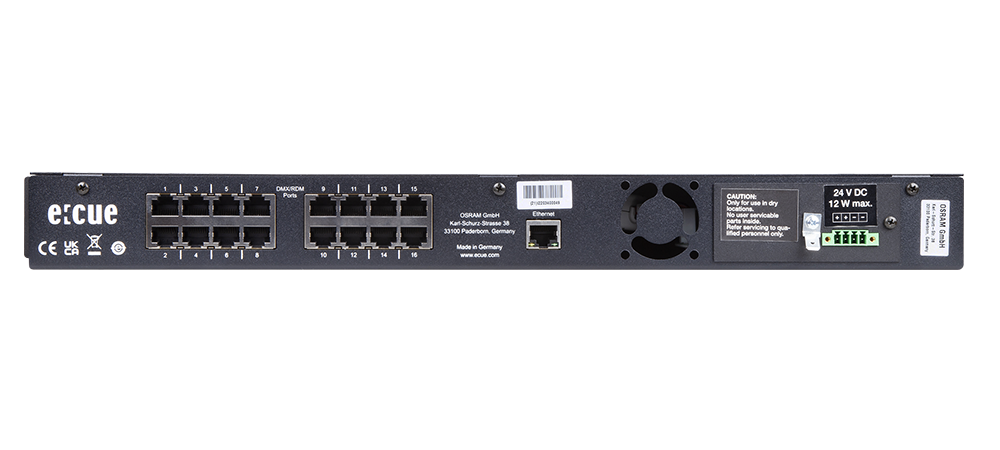

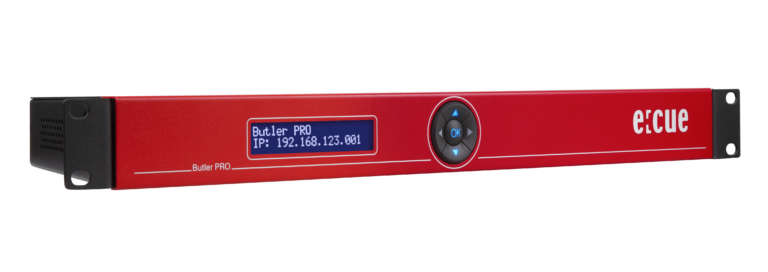

Butler PRO

The Butler PRO is the perfect choice for running a large number of DMX512 universes.

Ethernet to DMX or e:pix converter with 16 outputs in 19” format
Stores stills in the unlikely event of loss of connection with the server
Controls up to 8,192 DMX512/RDM channels in 16 DMX512/RDM universes (DMX512/RDM version)
Works with SYMPHOLIGHT
Highly flexible test options
Supports RDM for bidirectional communication with luminaires (only in the DMX512/RDM version)
Controls up to 32,768 e:pix channels in 16 e:pix universes (e:pix version)
Scalable to up to 65,536 DMX512/RDM channels via the LAS
Scalable to up to 750,000 RGB pixels with up to 25,000 RDM systems via Emotion FX
Can be installed effortlessly into standard 19-inch racks or mounted onto a wall or ceiling using rotatable mounting brackets

The Butler PRO is an e:net to DMX512/RDM (DMX512 version) or an e:net to e:pix (e:pix version) interface for the e:cue Lighting Application Suite (LAS) and SYMPHOLIGHT. Butler PRO is connected to the e:cue software via Ethernet. The Butler PRO DMX512 is the perfect choice for running a large number of DMX512 universes, offering support for 16 DMX512 universes with 8,192 channels and full RDM (Remote Device Management) capability for bidirectional communication with luminaires. The Butler PRO e:pix controls 16 e:pix universes with 32,768 channels. The system can be mounted ideally into a standard 19-inch rack. Yet, it is also possible to mount it onto a wall or ceiling m using rotatable mounting brackets.

IC DMX: AA628600035
IC e:pix: AA628610035

Download

Specification Sheets

EN Butler PRO DMX Spec v3p0

EN Butler PRO DC Spec v3p0

EN Butler Pro e:pix Spec v3p0

DE Butler PRO DMX Datenblatt v3p0

DE Butler PRO e:pix Datenblatt v3p0

Manuals

EN Butler PRO DC Setup v2p0

EN Butler PRO DMX/e:pix Setup v2p0

DE Butler PRO DMX/e:pix Setup v2p0

Tender Text

Tender Text – Butler PRO DMX

Tender Text – Butler PRO e pix

Conformity

Declaration Butler Pro

Specs

Dimensions (W x H x D)	482 x 44 x 142 mm / 19 x 1.7 x 5.6 in (incl. mounting brackets)
Weight	1200 g
Power	100 … 240 V AC, 50/60 Hz
Power Consumption	max. 20 W
Operating Temperature	0 … 40 °C / 32 … 104 °F
Storage Temperature	-20 … 70 °C / -4 … 158 °F
Operating/Storage Hum.	0 … 80% non-condensing
Protection Class	IP20
Materials	Steel, front powder coated
Mounting	in 19-inch standard racks
