The e:cue SYMPL relay Node is a switching interface which can be used with e:cue’s lighting control software SYMPHOLIGHT.

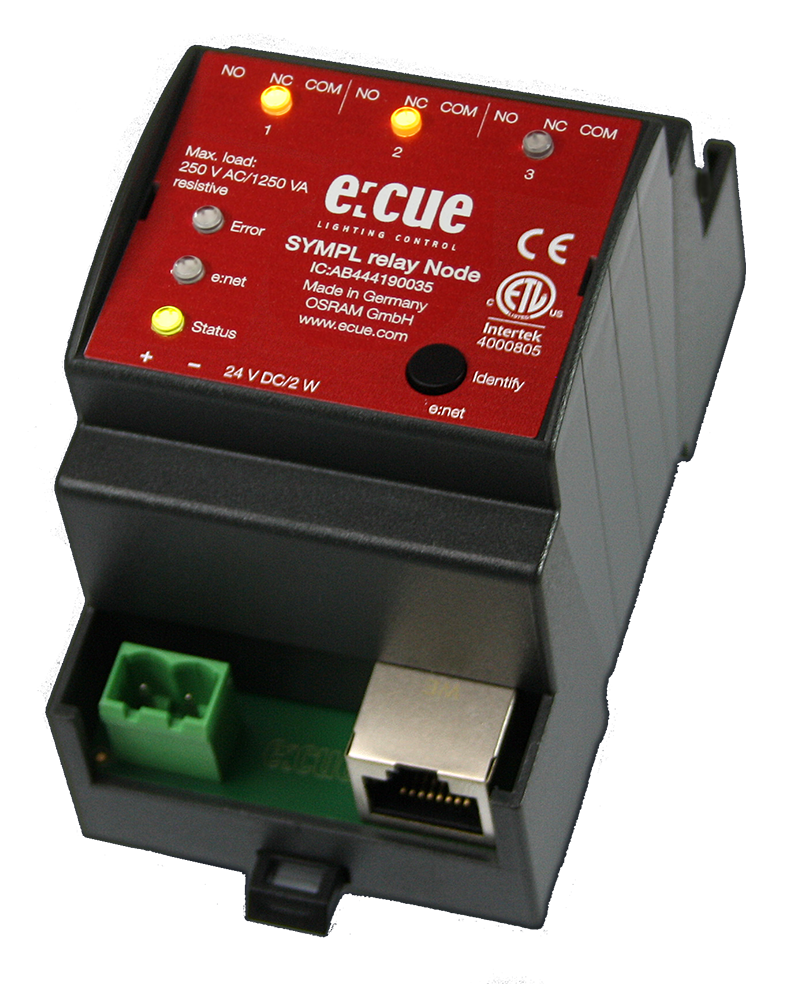

The e:cue SYMPL relay Node is a switching interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides three relay outputs in single-pole / double-throw configuration. The e:cue SYMPL relay Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). It is easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface. The e:cue SYMPL relay Node is a straightforward, reliable and easy to use interface solution for SYMPHOLIGHT.
IC: AB444190035
EAN: 4055462144034
Certifications & Approbations
| Dimensions (W x H x D) | 53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip) |
| Weight | 125 g |
| Power Supply | 24 V DC (terminal plug) or PoE IEEE 802.3af on RJ45 |
| Power Consumption | 2.8 W |
| Operating Temperature | 0 … 50 °C / -4 … 122 °F |
| Storage Temperature | -10 … 70 °C / -4 … 158 °F |
| Electrical Safety | SELV |
| Operating/Storage Hum. | 0 … 80% non-condensing |
| Protection Class | IP20 |
| Housing Material | Self extinguishing blend PC/ABS UL document E140692 |
| Mounting | on 35 mm DIN rail (EN 60715), 3 units or with key hole on any stable vertical surface |
| Certification | CE, ETL, UKCA |
| Interface | 3 x SPDT relays on 3-pin terminal plug |
| Interface Specifications | Contact ratings per relay: UL approved: 3 A @ 250 V AC / 3 A @ 30 V DC VDE approved: 5 A @ 250 V AC (resistive load) / 2 A @ 250 V AC; cos(phi)=0.5 Reinforced isolation contact/control system: 5 kV (1.2/50μs) Isolation between contacts: 1 kV (AC) |
| Ethernet-Port | 1 x e:net 10/100 Mbit/s, RJ-45 |
| User Interface | LEDs for error, Ethernet activity, device status, relay status, Identify button |
