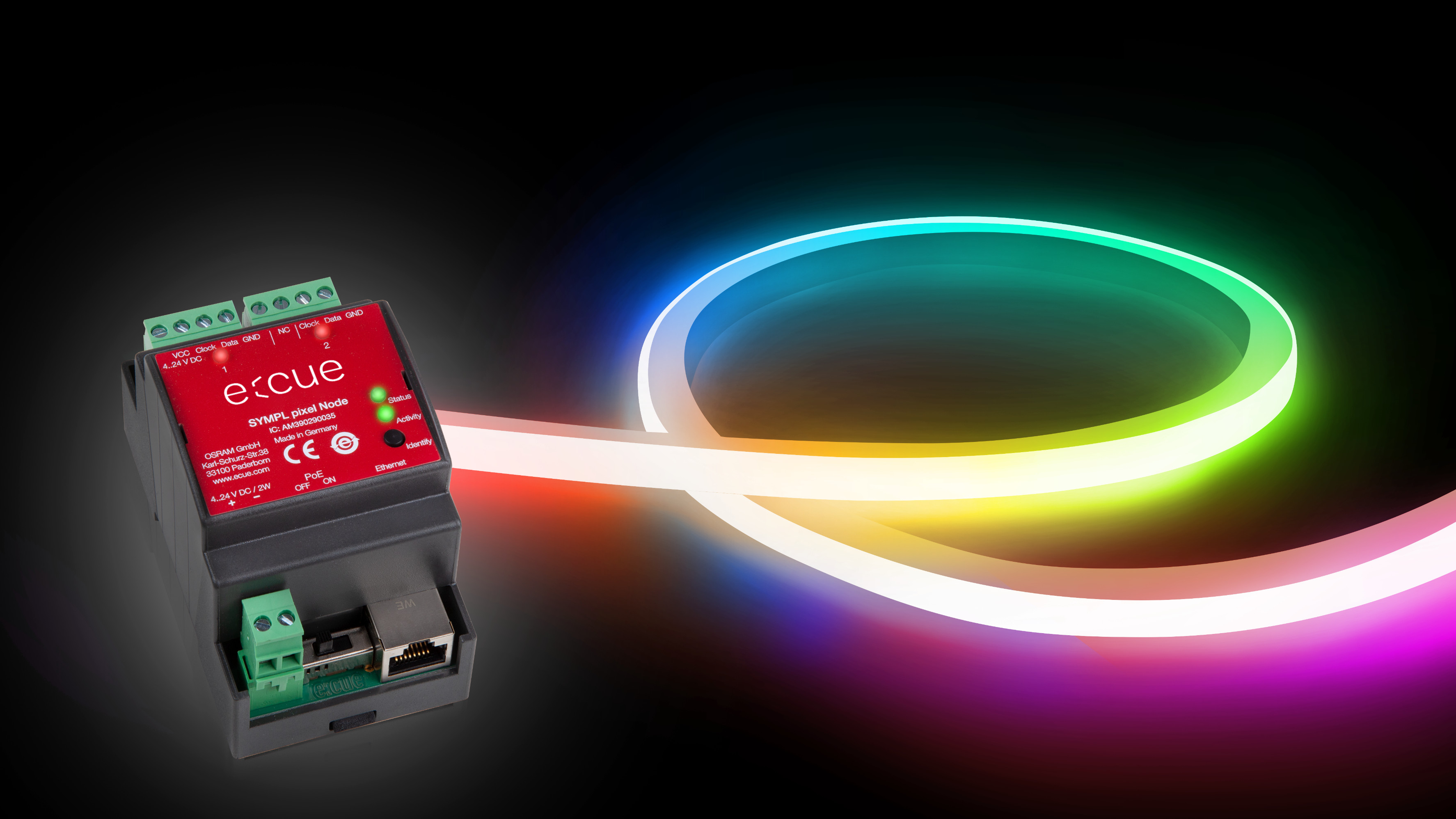

The SYMPL pixel Node is an LED pixel controller which supports various serial addressable LED pixel products like strips, dots and boards with individually controllable pixels
The SYMPL pixel Node is an LED pixel controller which supports various serial addressable LED pixel products like strips, dots and boards with individually controllable pixels. It can control a wide range of asynchronous and synchronous protocols (SPI).
You can create content using our software e:cue SYMPHOLIGHT (optional).
The SYMPL pixel Node comes with two pixel outputs with screw terminals. For each of the two outputs, you can configure the pixel protocol separately.
With the SYMPL pixel Node, it is possible to run up to 2 x 2048 channels (=4096 in total, = 1364 RGB pixels). You can cover distances of up to 300 m between the pixel Node and the lighting fixture with the optional Pixel Range Extender.
IC: AM390290035
EAN: 4055462313539
Certifications & Approbations
| Dimensions (W x H x D) | 53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip) |
| Weight | 100 g |
| Power Supply | Power supply input 5 … 24 V DC pass back power from Pixel Port 1 (e.g. from Pixel Strip) or 5 … 24 V DC terminal plug or PoE IEEE 802.3af on RJ45 |
| Power Consumption | 2 W |
| Operating Temperature | 0 … 50 °C / -4 … 122 °F |
| Storage Temperature | -10 … 70 °C / -4 … 158 °F |
| Electrical Safety | SELV |
| Operating/Storage Hum. | 0 … 80% RH, non-condensing |
| Protection Class | IP20 |
| Installation | Indoor installation only, intra building connections only |
| Housing Material | Self extinguishing blend PC/ABS UL document E140692 |
| Mounting | on 35 mm DIN rail (EN 60715), 3 units or with key hole on any stable vertical surface |
| Certification | CE, ETL, UKCA, RoHS, FCC |
| Output Connectors | 2 x serial addressable LED pixel output on 4-pin terminal plug |
| Output Channels | Up to 2048 pixel channels per output (= 682 RGB pixels) or up to 512 DMX channels per output (= 170 RGB pixels) |
| Output Wiring | Cable length between controller and fixture up to 3 m (with Pixel Range Extender up to 300 m) depending on installation setup, cable quality, and fixture type |
| Ethernet-Port | 1 x ethernet 10/100 Mbit/s, RJ45 for e:net and PoE |
| User Interface | LEDs for Ethernet activity, device status, output activity, Identify button, Web interface |
The tool to realise simple to highly sophisticated architectural lighting control projects – one software fits all!
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks.
A distance extender for one output of a SYMPL pixel Node, designed for bridging long distances between controller and fixture.
Learn More
Get2Know: Asynchrone & Synchrone (SPI) Protocols
Please contact us if the relevant protocol is missing for your product.
| Asynchronous: | APA104_400, APA104_800, TM1804_400, TM1804_800, TM1812, UCS2903, UCS2904, UCS8903_16bit, UCS8904A_16 bit, WS2811_400, WS2811_800, WS2812, WS2812b, WS2813, WS2818 |
| Asynchronous Differential: | DMX512 |
| Synchronous (SPI) with Clock: | WS2801, APA102 / APA102c |
Addressable LED Pixel products must be positioned very close to the output controllers. Depending on the manufacturer and chip, this can vary – but it should not be more than 3 m. Otherwise the signal becomes too weak.
With the e:cue Pixel Range Extender (PRE) you can extend asynchronous protocols up to 300 m. This provides you enormous freedom in positioning the pixel products and the SYMPL pixel Node!
