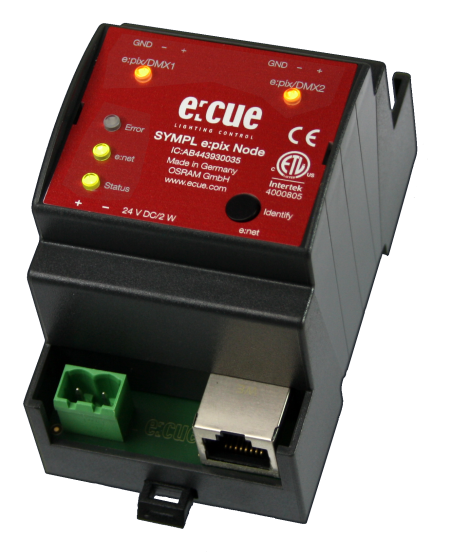

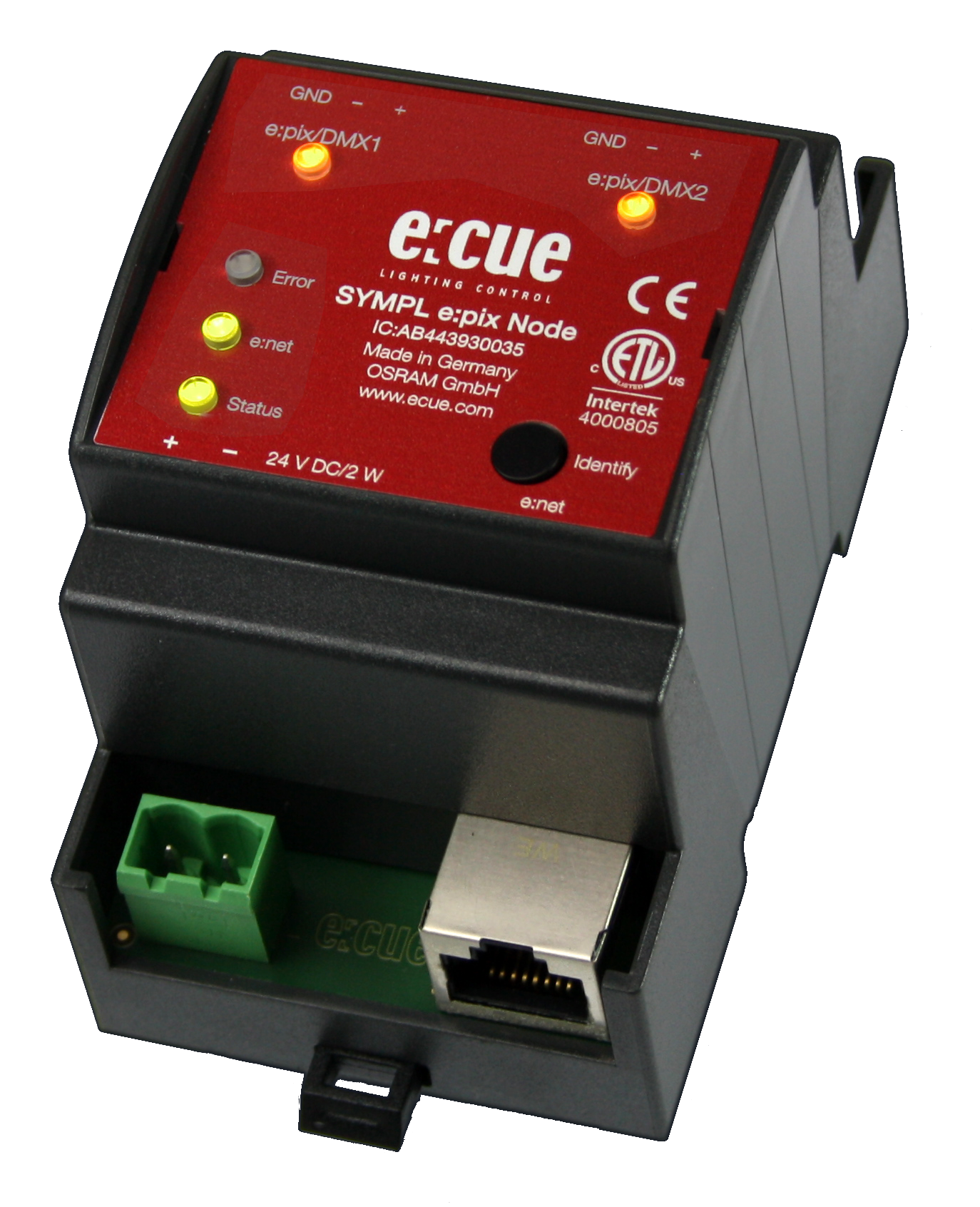

SYMPL e:pix Node

Two e:pix or DMX outputs
Up to 4096 channel with e:pix
Flexible mounting onto 35 mm DIN rails or vertical surfaces
Simple and easy integration into e:cue SYMPHOLIGHT
Separate webinterface for configuration

The SYMPL e:pix Node is a two-channel e:pix interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides two independent e:pix universes for up to 4096 channels. The SYMPL e:pix Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE). It is easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface. The SYMPL e:pix Node is a straightforward, reliable and easy to use interface solution for SYMPHOLIGHT.

IC: AB443930035
EAN: 4055462143532

Certifications & Approbations

Can’t find what you are looking for?

Do you need a custom product?

Inquire about custom options

Looking for fixture options?

Learn more about Traxon solutions

Dimensions (W x H x D)	53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)
Weight	100g
Power Supply	24 V DC (terminal plug) or PoE IEEE 802.3af on RJ45
Power Consumption	2 W (incl. e:[ix termination)
Operating Temperature	0 … 50 °C / -4 … 122°F
Storage Temperature	-10 … 70 °C / -4 … 158 °F
Electrical Safety	SELV
Operating/Storage Hum.	0 … 80% non-condensing
Protection Class	IP20
Housing Material	Self extinguishing blend PC/ABS UL document E140692
Mounting	On 35 mm DIN rail (EN 60715), 3 units, or with key hole on any stable vertical surface
Certification	CE, ETL, UKCA
Interface	2 x e:pix, 2048 channels/universe, individually isolated (1 kV), 3-pin terminal plug
Interface Specifications	V_DMXmax = 4.8 V, V_DMXmin = 0.8 V Short circuit current I_SCmax = 62 mA
Ethernet-Port	1 x e:net 10/100 Mbit/s, RJ-45
User Interface	LEDs for error, Ethernet activity, device status, e:pix status, Identify button
