sACN/Art-Net/e:net to DMX512/e:pix interface

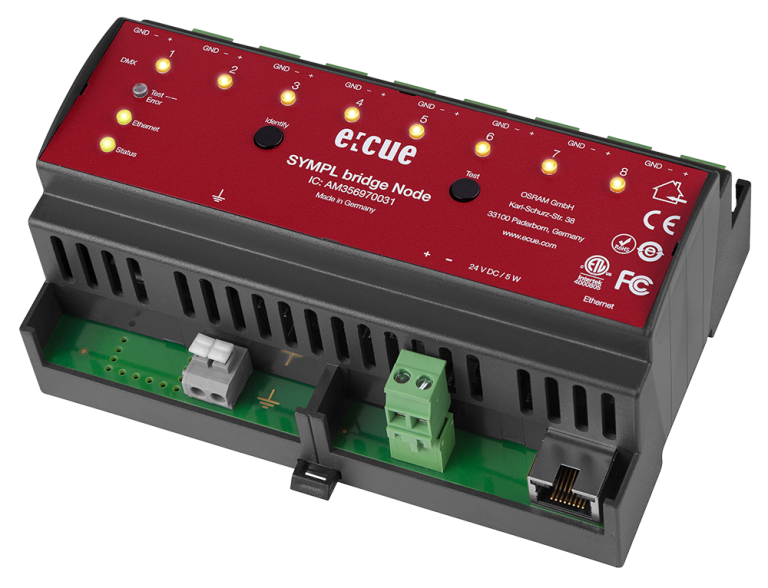

The SYMPL bridge Node is similar to the Bridge8 but the key difference is that besides DMX it also supports e:cue’s own protocol “e:pix “. This grants full access to Traxon fixtures via the e:pix protocol by 3rd party controller utilizing Art-Net or sACN with up to 32 Universes. Enjoy the advantages of the e:pix protocol now also with any 3rd party controller.
The SMYPL bridge Node is especially designed for projects in tough outdoor environments. Designed for this use, it comes with integrated surge protection and components that allow a very high operating temperature – the outputs are isolated up to 3,75kV.The built-in web interface enables all parameters to be easily set and managed. With a freely definable DMX value the source IP (sACN/Art-Net Sender) can be easily changed to a different device.
IC: AM356970031
Certifications & Approbations
The tool to realise simple to highly sophisticated architectural lighting control projects – one software fits all!
| Dimensions (W x H x D) | 143 x 92 x 62 mm / 5.63 x 3.6 x 2.4 in (excl. fastening clip |
| Weight | 250 g / .55 lb |
| Power Supply | 24 … 48 V DC (terminal plug), reverse polarity protection or PoE IEEE 802.3af on RJ45 |
| Power Consumption | Max. 8 W (incl. DMX termination) |
| Operating Temperature | -40 … 70 °C* / -40 … 158 °F* |
| Storage Temperature | -40 … 70 °C / -40 … 158 °F |
| Electrical Safety | SELV |
| Operating/Storage Hum. | 0 … 80% non-condensing |
| Protection Class | IP20 |
| Housing Material | Self extinguishing blend PC/ABS |
| Mounting | On 35 mm DIN rail (EN 60715) or with key hole on any stable vertical surface |
| Certification | CE, ETL, UKCA |
| Interface | 8 x DMX512 / 8 x e:pix Isolated in pairs Surge protection 3-pin terminal plug |
| Interface Specifications | VDMXmax / VDMXmin = 4.6 V / 0.8 V Short circuit protected: ISCmax = 100 mA |
| Ethernet-Port | 1 x e:net/ethernet 10/100 Mbit/s RJ-45, Surge protection |
| Sensors | Temperature -40 … 120 ±°C (0.2 °C) Humidity 0 … 100% (±2%) |
| User Interface | LEDs for error, Ethernet activity, device status, DMX status, Identify button, Test button |
*70 °C / 158 °F for max. 1 hour/day; continuous operation at max. 60 °C / 140 °F.
