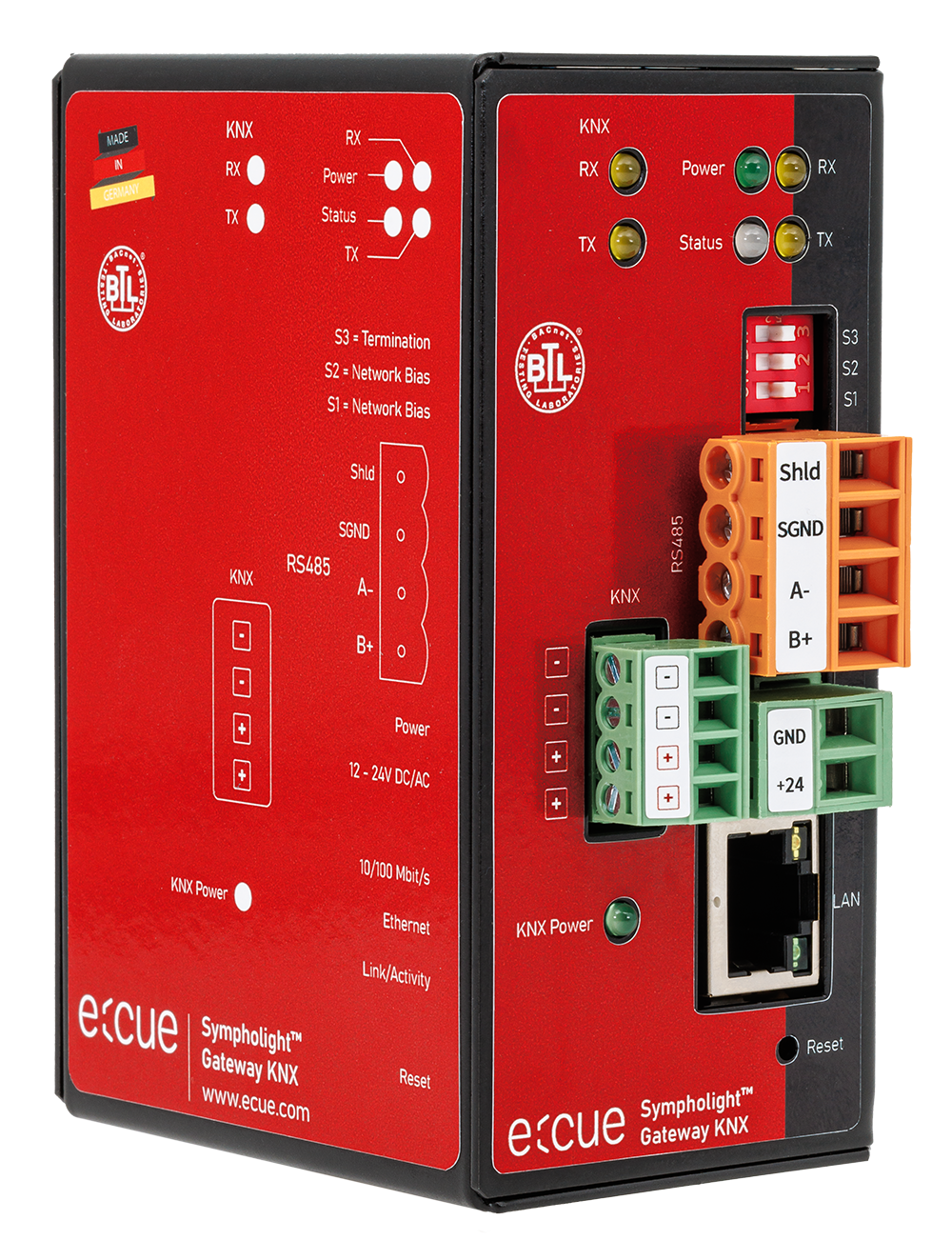

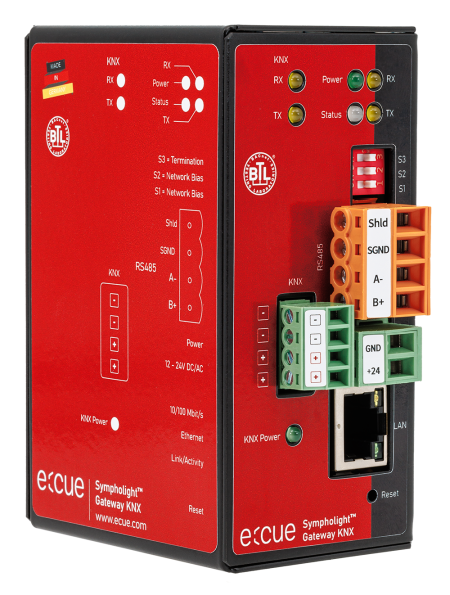

SYMPHOLIGHT Gateway KNX

Connects SYMPHOLIGHT to a building management system via KNX

Converting SYMPHOLIGHT’s MQTT to KNX
Forwarding of any data from SYMPHOLIGHT via MQTT, e.g brightness and color information, sensor, energy and luminaire information (RDM, DALI)
Available with 25, 500 or 2500 data points (1 data point corresponds to one unidirectional piece of information from SYMPHOLIGHT)
Automation functions (alarms, trend log recording and scheduling) on a data point basis
Reporting of system status, sequence information and failures
Web interface for configuration
Fast import of large data point configuration via Excel file
Incl. SYMPHOLIGHT license for transmission of MQTT data

The SYMPHOLIGHT Gateway is an MQTT to KNX interface. It converts data from the lighting management system SYMPHOLIGHT into the KNX format. Forward e.g. movement and brightness information and to process it smartly in the KNX system.

With the integrated web interface, you can configure the SYMPHOLIGHT Gateway using a web browser, save the configuration and call up statistics and documentation. That makes configuring the devices significantly easier, allowing them to be commissioned more quickly.

IC KNX Gateway +25 Datapoints: AM476260031
IC KNX Gateway +500 Datapoints: AM476270031
IC KNX Gateway +2500 Datapoints: AM476280031

Download

Specification Sheets

EN SLGateway KNX Spec v2p0

Manuals

EN SLGateway KNX Quickstart v1p1

EN SLGateway KNX Setup v1p0

CAD Files

SLGateway KNX Front

SLGateway KNX Side

Conformity

EU-Declaration of Conformity Sympholight Gateway v1p1

System Topology

Specs

Dimensions (W x H x D)	48 x 100 x 65 mm / 1.89 x 3.94 x 2.56 in (excl. fastening clip)
Weight	300 g / 0.66 lb
Power Supply	12 … 24 V DC or AC (terminal plug)
Power Consumption	1.9 W
Operating Temperature	0 … 45 °C / 32 … 113 °F
Storage Temperature	0 … 45 °C / 32 … 113 °F
Electrical Safety	SELV
Operating/Storage Hum.	20 … 80% non-condensing
Protection Class	IP20
Housing Material	Metal
Mounting	On 35 mm DIN rail (EN 60715)
Certification	CE, UKCA
KNX Interface	4-pin plug (+, +, –, –) Power consumption KNX bus: max. 7 mA (average 4 mA)
Power Interface	Power supply on 2-pin terminal plug V + : 12 …. 24 V DC or AC V – : GND or 12 … 24 V AC
Ethernet-Port	1 x Ethernet 10/100 Mbit/s, RJ-45
User Interface	LEDs for Ethernet activity, KNX activity and device status Reset button Web interface for configuration
