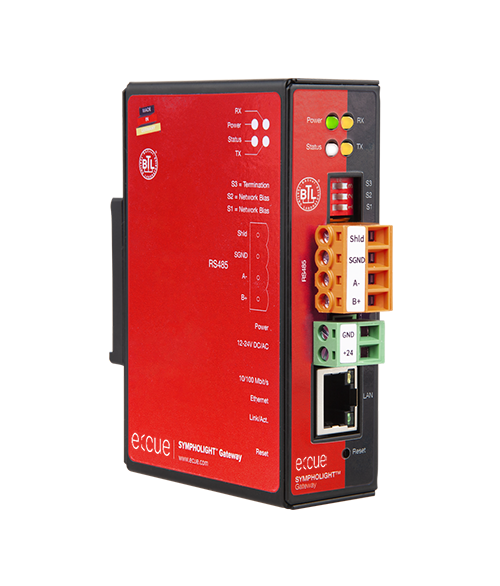

SYMPHOLIGHT Gateway BACnet

Connects SYMPHOLIGHT to a building management system via BACnet

Converting SYMPHOLIGHT’s MQTT to BACnet
Forwarding of any data from SYMPHOLIGHT via MQTT, e.g brightness and color information, sensor, energy and luminaire information (RDM, DALI)
Available with 25, 500 or 2500 data points (1 data point corresponds to one unidirectional piece of information from SYMPHOLIGHT)
Automation functions (alarms, trend log recording and scheduling) on a data point basis
Reporting of system status, sequence information and failures
Web interface for configuration
Fast import of large data point configuration via Excel file
BACnet/SC - Encrypted transmission via BACnet standard 22
Incl. SYMPHOLIGHT license for transmission of MQTT data

The SYMPHOLIGHT Gateway is an MQTT to BACnet interface. It converts data from the lighting management system SYMPHOLIGHT into the building management system compliant format. Forward e.g. movement and brightness information and to process it smartly in the building management system.

With the integrated web interface, you can configure the SYMPHOLIGHT Gateway using a web browser, save the configuration and call up statistics and documentation. That makes configuring the devices significantly easier, allowing them to be commissioned more quickly.

IC Gateway +25 Datapoints: AM476230031
IC Gateway +500 Datapoints: AM476240031
IC Gateway +2500 Datapoints: AM476250031

Download

Specification Sheets

EN SLGateway BACnet Spec v1p3

Manuals

EN SLGateway BACnet Quickstart v1p6

EN SLGateway BACnet Setup v1p4

CAD Files

Sympholight Gateway Front

Sympholight Gateway Side

Conformity

EU-Declaration of Conformity SLGateway BACnet v1p1

System Topology

Specs

Dimensions (W x H x D)	31 x 100 x 65 mm / 1.22 x 3.94 x 2.56 in (excl. fastening clip)
Weight	250 g / 0.55 lb
Power Supply	12 … 24 V DC or AC (terminal plug)
Power Consumption	1.7 W
Operating Temperature	0 … 40 °C / 32 … 104 °F
Storage Temperature	0 … 40 °C / 32 … 104 °F
Electrical Safety	SELV
Operating/Storage Hum.	20 … 80% non-condensing
Protection Class	IP20
Housing Material	Metal
Mounting	On 35 mm DIN rail (EN 60715)
Certification	CE, UKCA
Power Interface	Power supply on 2-pin terminal plug V + : 12 …. 24 V DC or AC V – : GND or 12 … 24 V AC
Ethernet-Port	1 x Ethernet 10/100 Mbit/s, RJ-45
User Interface	LEDs for Ethernet activity and device status, Reset button, web interface for configuration
