Server

Perfectly balanced hardware makes our software a reliable solution. Our servers come with the promise of the perfect mix of performance, dependability So to say an full service package for your project!

Sympl Core Sp

Tiny Stand-alone engine for e:cue Sympholight.
Competitive solutions for smaller projects

Lighting Control Engine 3 mx

A robust high-performance server with pre-installed Sympholight & LAS . Designed to control small to medium projects.

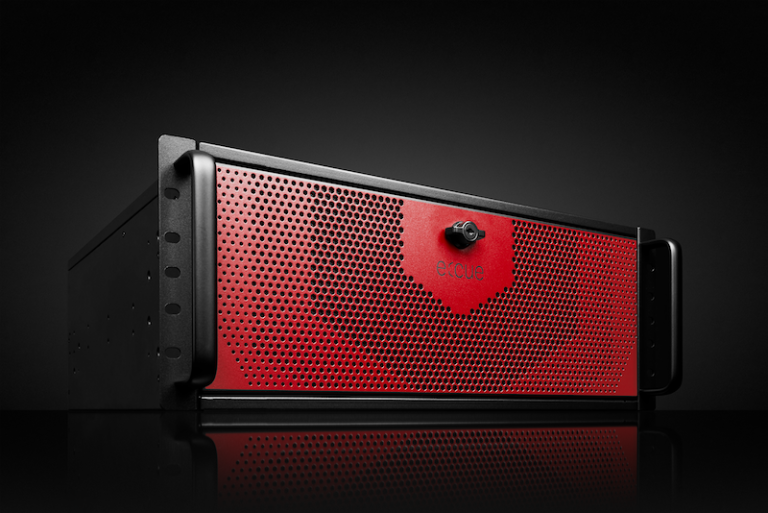

Lighting Control Engine 4

A high-performance server with pre-installed Sympholight & LAS . Designed to control medium to large projects.

Lighting Control Engine 4 turbo

Without compromise and with maximum performance. Live video capture sever for medium to very large projects

e:cue robust powerful reliable Server

Designed to control large and complex projects, our Lighting Engines are high-performance servers with pre-installed SYMPHOLIGHT and the Lighting Application Suite (LAS) software. A central control unit, this versatile server guarantees uninterrupted operation as it orchestrates all devices and fixtures within a project.

e:cue Server Range is scalable to cover any project requirements.

Find the right server for your project

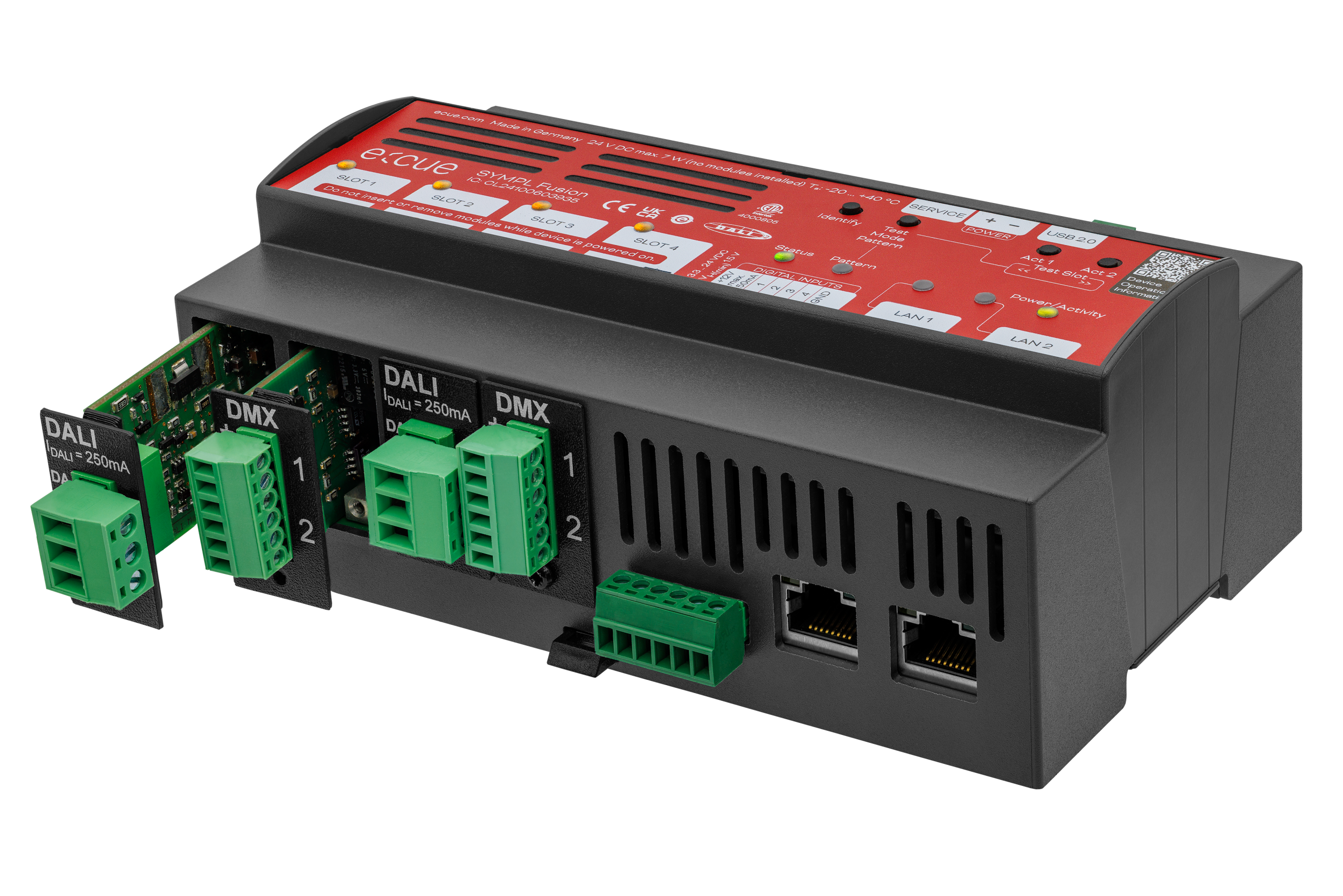

Functions & Performance	SYMPL Core Sp	SYMPL FUSION	LCE3MX	LCE 4	LCE 4 turbo
Max Pixel (RGB or RGBW) with SYMPHOLIGHT*	up to 5,000	up to 15,000	up to 50,000	up to 500,000 For more pixel control, contact your local e:cue representative	up to 500,000 For more pixel control, contact your local e:cue representative
Max Pixel (RGB or RGBW) with Lighting Application Suite*	-	-	up to 10,000	up to 22,000	up to 2,000,000 (Emotion FX)
Max DALI Devices with SYMPHOLIGHT*	256 Ballasts 64 DALI groups (virtual) 42 DALI buttons 42 PIR motion sensors 42 Light sensors	Final performance test pending	512 Ballasts 64 DALI groups (virtual) 84 DALI buttons 84 PIR motion sensors 84 Light sensors	3072 Ballasts 128 DALI groups (virtual) 168 DALI buttons 168 PIR motion sensors 168 Light sensors	3072 Ballasts 128 DALI groups (virtual) 18 DALI buttons 168 PIR motion sensors 168 Light sensors
License	SYMPHOLIGHT	SYMPHOLIGHT	SYMPHOLIGHT & Lighting Application Suite	SYMPHOLIGHT & Lighting Application Suite	SYMPHOLIGHT & Lighting Application Suite & Emotion FX
Operating System	Linux	Linux	Windows 10	Windows 11	Windows 11
Special	Standalone device with embedded SYMPHOLIGHT	Standalone device	Fanless operation	-	Optimized for video capturing (Emotion FX)
Mounting	DIN rails (EN 60715)	DIN rails (EN 60715)	Wall mounting or DIN rail (not included)	in 19-inch rack with rails	in 19-inch rack with rails
Direct User Interface	-	-	-	-	-
Virtual User Interface	Configuration website & ActionPad	Configuration website & ActionPad	Configuration website (SYMPHOLIGHT) & ActionPad	Configuration website (SYMPHOLIGHT) & ActionPad	Configuration website (SYMPHOLIGHT) & ActionPad
Ethernet Ports	1	2	2	2	2
Direct Relay Out	- (add. SYMPL relay Node)	- (add. SYMPL relay Node)	- (add. SYMPL relay Node)	- (add. SYMPL relay Node)	- (add. SYMPL relay Node)
Digital Dry Contact	-	4	-	-	-
Typical Power Consumption	7 W	Max. 30 W @ 4 x DALI-2 modules @ full load 7 W @ no modules	60 W	115 W	115 W
Power Supply	external 24-48 V DC (not included) or PoE	24 V DC	external 12 V DC (not included)	200 - 240 V AC, 50/60 Hz	200 - 240 V AC, 50/60 Hz

*Based on project measurements with either DALI or DMX fixtures, not mixed (e.g. 5000 RGB pixel OR 256 DALI ballast). A medium complex SYMPHOLIGHT workflow layout with rare real time calculations (e.g. sensor measurement data) utilizing e:cue output devices like SYMPL or Butler range. Max 2 running video sequences in parallel.

Note: High complex shows files with many parallel running sequences/cue lists and complex workflows, triggers, logic and scripting scenarios may reduce the quantity of output channel and devices. Please contact your e:cue partner for more details and additional server configurations. We are happy to assist you in choosing the best solution for your project.
