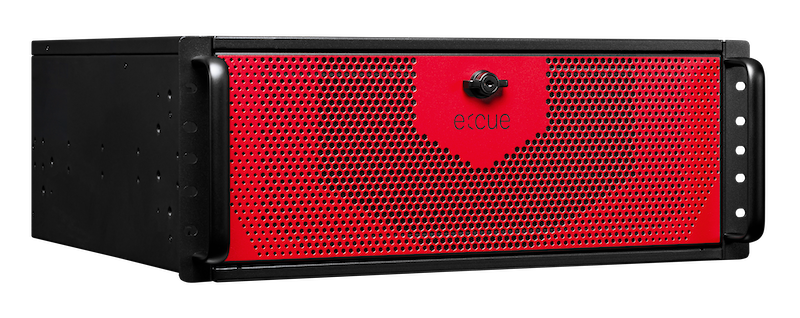

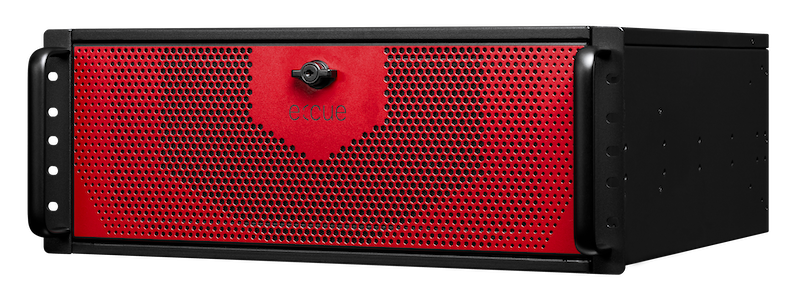

Lighting Control Engine 4

A high-performance server with two pre-installed e:cue software applications designed for medium to large projects.

Software licenses for e:cue’s SYMPHOLIGHT and Lighting Application Suite, pre-installed
High quality industrial components for reliable uninterrupted and efficient 24/7 operation of SYMPHOLIGHT and LAS
2 x M.2 SSD disk drive in RAID 1 operation for increased system stability
Easily mountable in 19 inch racks, space saving (4U)
5 years of support and warranty

The Lighting Control Engine 4 (LCE4) serves as a high-performance server for controlling large lighting projects, with pre-installed e:cue SYMPHOLIGHT and Lighting Application Suite (LAS). As a central control unit, this versatile light control server orchestrates all devices and lights within a project. The LCE4 supports a wide range of Ethernet-based protocols. Shows and light scenes can be controlled with the internal web server via mobile devices, web browsers or via cloud applications. The LCE4 is the ultimate server solution for any demanding lighting project.

IC LCE4: CL25100005035
IC LCE4 (Multi-Range PSU): CL25100005735

Download

Specification Sheets

EN LCE4 (Multi-Range PSU) Spec v1p4

Manuals

EN LCE4 (Multi-Range PSU / turbo) Setup v1p2

CAD Files

LCE4_Back

LCE4_Front

Conformity

EU-Declaration of Conformity LCE4 v1p0

Specs

Dimensions (W x H x D)	430 x 176 x 468 mm / 16.93 x 6.93 x 18.43 in (excl. mounting brackets)
Weight	tba
Power Supply	200 … 240 V AC, 50/60 Hz
Power Consumption	110 W typically
Operating Temperature	0 … 40 °C / 32 … 104 °F
Storage Temperature	-10 … 70 °C / 14 … 158 °F
Operating/Storage Hum.	0 … 80% RH, non-condensing
Protection Class	IP20
Housing Material	Steel, front panel powder-coated
Mounting	In 19-inch rack with rails
Certification	CE, UKCA
USB	1 x USB 3.0 Type-C (front, behind cover) 2 x USB 3.0 (front, behind cover) 1 x USB 3.2 Gen2 Type-C (rear) 1 x USB 3.2 Gen 2 (rear) 4 x USB 3.2 Gen 1 (rear) 2 x USB 2.0 (rear)
Ethernet Port	2 x e:net 10/100/1000/2500 Mbps, RJ45
Serial Interfaces	1 x RS-232
Graphics	2 x HDMI 4 x DisplayPort
Audio	1 x audio (front, behind cover) 2 x microphone (1 x front, behind cover, 1 x rear) 1 x audio/line output (rear) 1 x audio/line input (rear)
Data Storage	2 x M.2 SSD HDD (RAID 1 config)
