| Dimensions (W x H x D) |
80 x 160 x 12 mm / 3.15 x 6.3 x 0.47 in
|
| Weight |
200 g (incl. mounting plate) |
| Power supply |

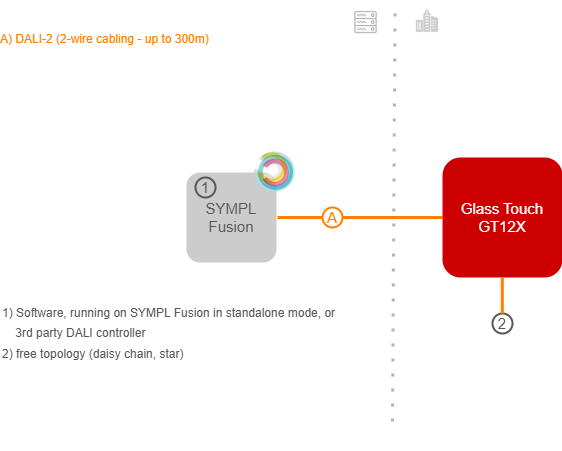

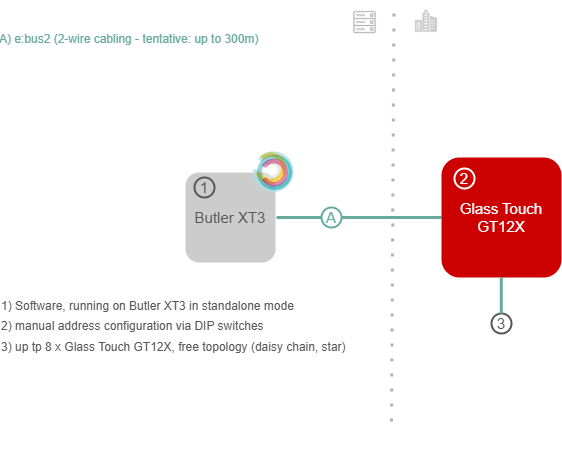

via DALI-2 bus or e:bus2 (2-wire cabling) |
| Power consumption |
0.15 W max. |
| Operating temperature |
0 … 45 °C / 32 … 113 °F |
| Storage temperature |
-20 … 75 °C / -4 … 167 °F |
| Operation/Storage humidity |
0 … 80% RH, non-condensing |
| Protection class |
IP40 |
| Housing |
Glass (surface), Aluminium (mounting plate), ABS (housing body)
UV, scratch and cleaning detergent resistant
|
| Mounting |
In standard in-wall fitting |
| Certificates |
CE, UKCA, DALI-2, ETL pending |
| Interfaces |
2 x DALI-2 or e:bus2 (not e:bus compatible!) |
| Addresses |
1 |
| DALI-2 power consumption |
4 mA typical, max. 10 mA |
| User interfaces |
13 x capacitive touch sensor
13 x feedback LED (monochrome red, protocol controlled)
Rotary DIP switch (protocol selection, e:bus2 addressing) |
| Beeper |
Acoustic feedback |
| Terminal connection type |
Push-In |
| Wire size solid core, stranded wire without end ferrule |
0.2 … 1.5 mm² (AWG24 … AWG16) |
| Wire size stranded wire with end ferrule |
0.2 … 0.75 mm² (AWG24 … AWG19) |
| Stripping length |
8 mm / 0.31 in |
| Tightening / release of wire |
Push button |
ETL pending
