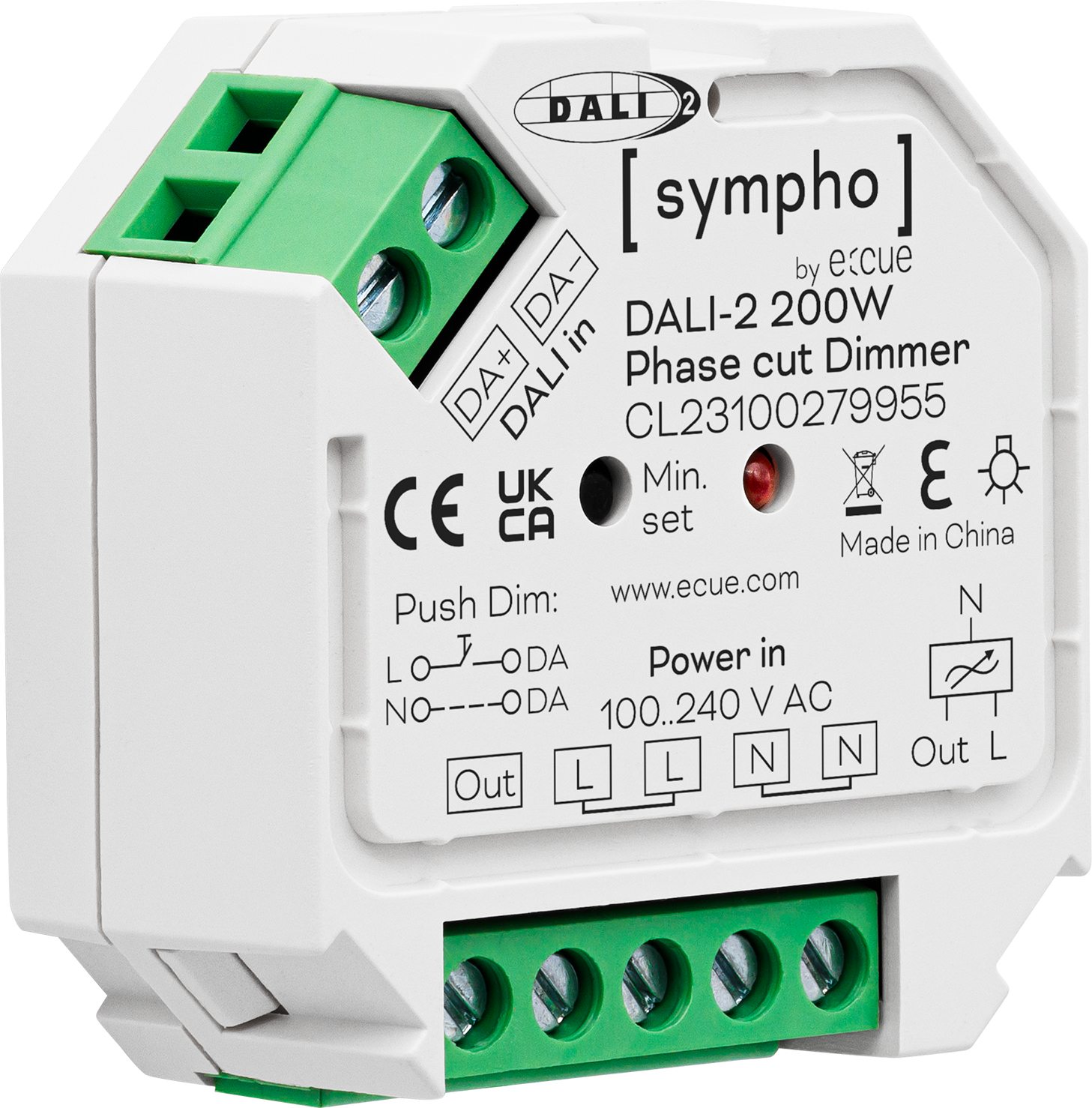

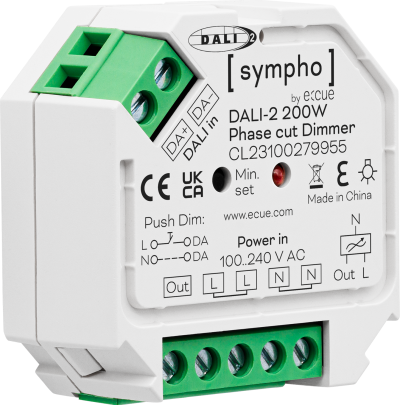

DALI-2 200W Phase cut Dimmer

DALI-2 to alternating current dimmer

Dim and switch LED lamps and traditional lights
Control via DALI and push switch control interface
1 DALI address to control 1 channel output, up to 400 W
100 ... 240 V AC input and output voltage
Supports resistive and capacitive loads
DALI-2 certified
In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
Innovative minimum brightness setting function
IP20

The DALI-2 LED & Light Dimmer allows seamless dimming and switching of both LED and traditional lights via DALI or push switch control. Supporting up to 400 W, it works with resistive and capacitive loads, offering wide voltage compatibility (100–240 V AC).

With an innovative minimum brightness function and compliance with IEC 62386 standards, this DALI-2 certified dimmer ensures efficient, reliable lighting control.

IC: CL23100279955

Download

Specification Sheets

EN sympho DALI-2 200W Phase cut Dimmer Spec v1p3

Manuals

EN sympho DALI-2 200W Phase cut Dimmer Instructions v1p3

Specs

Dimensions (W x H x D)	46 x 45 x 20 mm / 1.81x 1.77 x 0.79 in
Weight	50 g
Power input	100 … 240 V AC
Operating Temperature	-20 … 45 °C / -4 … 113 °F
Storage Temperature	-40 … 85 °C / -40 … 185 °F
Operation / storage humidity	5 … 95% RH, non-condensing
Mounting	Place in in-wall mounted boxes
Protection class	IP20
Certificates	CE, UKCA, DALI2, RoHS
Input	1 x DALI
Outputs	1 x AC channel: 100 … 240 V AC 1.8A max.
Output dimming curve gamma	Logarithmic
User interfaces	1 x button 1 x LED
Connection type	Screw terminal connectors
Wire size solid core, stranded wire with end ferrule	0.5 … 2.5 mm² (AWG20 … AWG13)
Tightening / release of wire	Screw mechanism
